Stage Hoist: The Core Technology and Intelligent Evolution of Stage Hoisting

I. Basic Principles

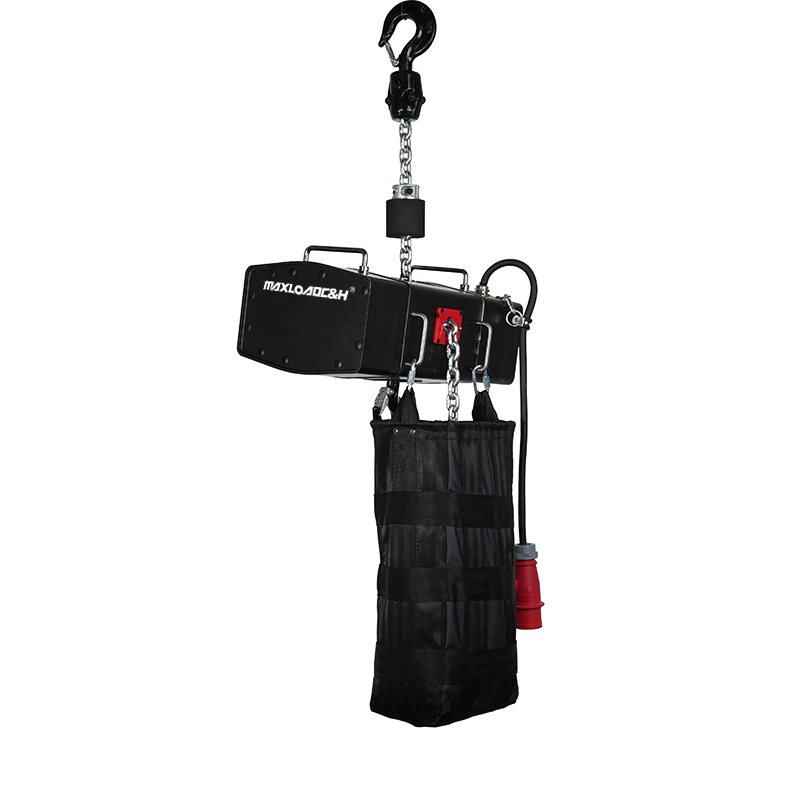

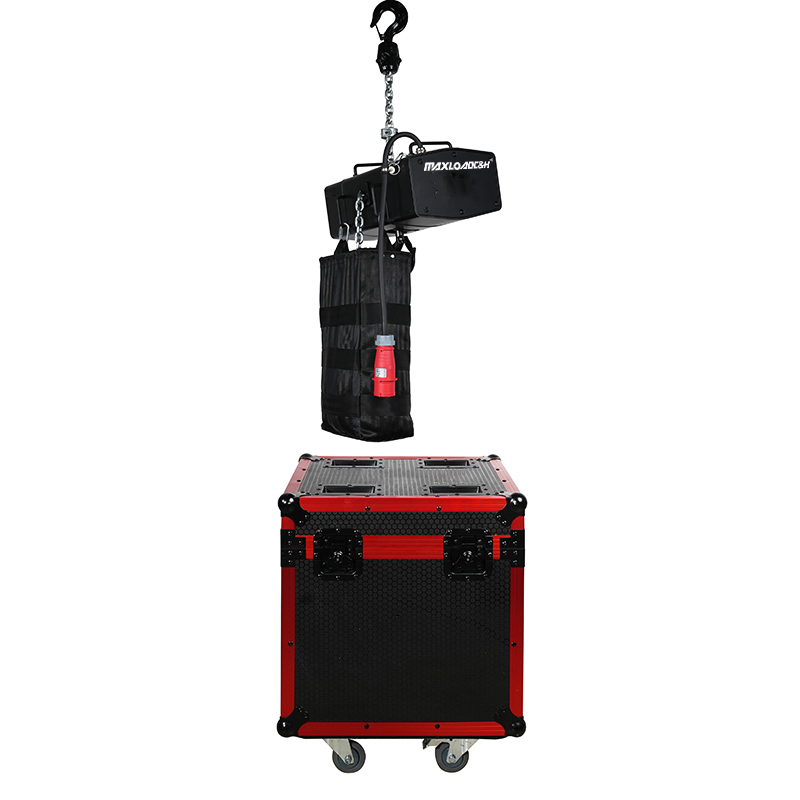

An electric stage hoist is an electric lifting device designed specifically for stage equipment. It uses an electric motor to drive a drum or chain system to raise and lower loads precisely. Its core power comes from a conical rotor motor. When powered, the axial magnetic tension between the rotor and stator compresses a spring, releasing the brake friction pads to start the motor. When powered off, the spring resets, and the friction pads press against the brake wheel, creating a mechanical brake.

The power transmission path is: motor → coupling → three-stage gear reducer → hollow shaft → drum. The drum is wound around a wire rope or chain to raise and lower the load. Chain transmission utilizes a multi-link chain, offering high efficiency and safety. Safety devices such as a flameout limiter and travel switch are also included to prevent over-limit operation.

II. Structural Innovation: A Breakthrough from External to Internal Frequency Conversion

Traditional electric hoists often use an external frequency conversion control unit, requiring an external cable to connect to the motor. This presents problems such as system complexity, cumbersome wiring, and electromagnetic interference. The built-in variable frequency electric hoist integrates the inverter module directly into the motor, creating a highly integrated structure with significant technical advantages:

Improved real-time control: Shortens the signal response path, supports closed-loop speed and position control, and uses built-in algorithms to dynamically correct the lifting process, ensuring synchronized start and stop of multiple units.

Enhanced system stability: Simplified electrical connections reduce electromagnetic interference, and increased integration optimizes the spatial layout and construction efficiency of the hoisting system.

Load adaptability: Integrates with load cells to obtain real-time load status. Bus communication or master control coordination mechanisms ensure consistent commands across multiple units, compensating for speed deviations caused by load changes or mechanical differences, preventing unbalanced loading and chain twisting.

Optimized braking system: Utilizing a "zero-speed hovering + delayed braking" strategy, the mechanical brake is triggered after the motor decelerates to zero speed, reducing brake wear, minimizing inertial sway of the hoisted object, and improving static stability.

III. Functional Expansion: Intelligent and Modular Control

The built-in variable-frequency electric hoist uses reserved standard communication interfaces (such as CANopen) to enable seamless data exchange with host computers, load monitoring platforms, and safety interlock modules. Its core functions include:

Centralized Control Platform Access: Centralized scheduling and monitoring of multiple devices, supporting software upgrades and remote parameter adjustments to meet project customization requirements.

Real-Time Load Monitoring and Interoperability: In conjunction with systems such as KiloHub, overload alarms are provided to prevent overload operation.

Multi-Unit Synchronous Control: In large-scale stage and venue rigging, closed-loop speed and position control ensures stable horizontal positioning during the raising and lowering of lighting trusses, LED screens, and other equipment, automatically correcting errors.

Visual Operation and Maintenance Support: Supports data recording and analysis, providing a basis for equipment maintenance and reducing downtime.

IV. Application Scenarios: Diverse Coverage from Stage to Industrial

Stage Performance:

Used for hanging and adjusting lighting equipment, audio equipment, LED screens, and more, achieving dynamic lighting changes and precise positioning. For example, in concerts, multiple electric hoists can synchronize the raising and lowering of lighting trusses to enhance the visual effect. It supports slow fine-tuning positioning or rapid lifting to accommodate diverse performance needs.

Fixed Venue Renovation:

In theaters and stadiums, it handles daily lifting, regular maintenance, and performance adjustments, offering exceptionally smooth operation and low maintenance costs.

Studio lighting and scenery lifting require silent operation, and built-in variable frequency technology reduces grid impact and improves power supply stability.

Industrial and Commercial Scenarios:

In factories and warehouses, it is used for lifting and handling goods, improving logistics efficiency.

In shopping malls, it enables the rapid arrangement and adjustment of shelves and display cases, thereby optimizing display space.

V. Technology Trends: Automation and Platform Development

With the stage industry's growing demand for safety, efficiency, and visual maintenance, built-in variable frequency electric hoists have become a standard feature of rigging systems. Future development directions Ie:

Higher-Level Intelligence: Optimizing load distribution and achieving adaptive control through AI algorithms.

Modular Design: Plug-and-play support reduces on-site deployment challenges.

Data Connectivity: Integrating with IoT platforms enables remote monitoring and predictive maintenance.

Conclusion

Electric stage hoists, with their built-in frequency conversion technology, closed-loop control, and modular design, have achieved the leap from simple lifting equipment to the core of intelligent stage rigging. Their breakthroughs in control precision, operational safety, and system integration not only meet the demands of complex performance scenarios but also provide efficient solutions for industrial rigging, commercial displays, and other fields. In the future, as technology continues to evolve, electric stage hoists will become a key enabler of automated and intelligent rigging systems.
