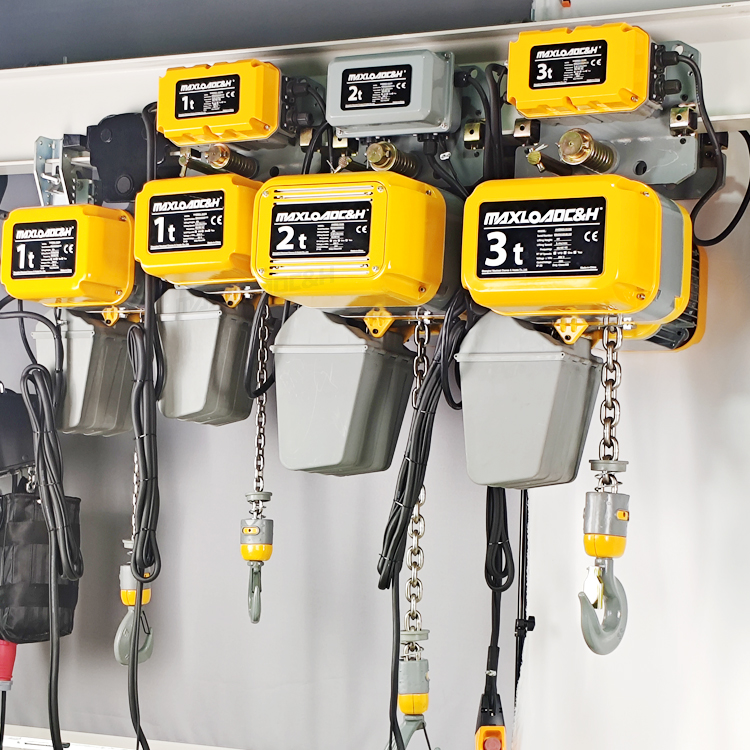

Safety devices for electric hoists

In modern industrial production, electric hoists, as essential material handling equipment, are widely used in factories, warehouses, ports, and other settings. Their efficiency and convenience greatly enhance operational efficiency, but the potential safety risks cannot be ignored. According to statistics from the State Administration for Safety Production, accidents caused by improper operation or malfunctioning safety devices of electric hoists still account for over 15% of all special equipment accidents annually. This article will delve into the safety protection system of electric hoists from three perspectives: safety device classification, working principles, and maintenance key points, providing professional guidance for industrial safety production.

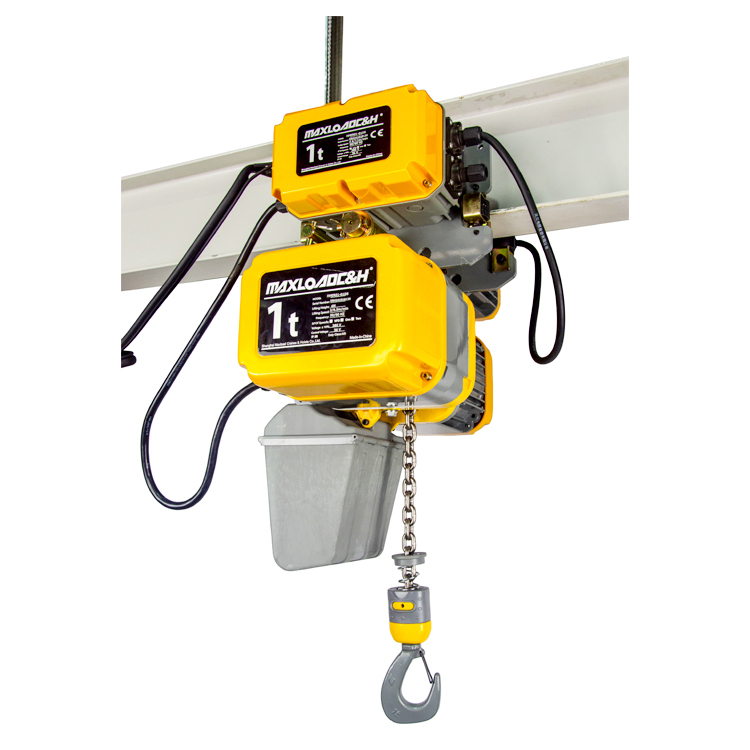

I. Classification and Functions of Core Safety Devices

The safety system of electric hoists adopts a dual-mode design of "active protection + passive protection," forming a multi-layered protection network. Based on their functional characteristics, these devices can be categorized into three main types: mechanical protection, electrical protection, and intelligent monitoring.

Mechanical protection devices provide basic protection through physical structures, mainly including upper and lower travel limit switches, overload limiters, and wire rope slack detectors. The upper and lower travel limit switches use a worm gear mechanism for precise positioning; when the hook reaches the limit position, the limit switch triggers to cut off the motor power, effectively preventing "overtravel" or "undershoot" accidents. The overload limiter uses a strain gauge sensor to monitor load changes in real time; when the load exceeds 110% of the rated load, it automatically shuts down the power and activates an audible and visual alarm to alert operators. The wire rope slack detector uses a spring-roller mechanism to monitor wire rope tension; when the slack exceeds the threshold, it triggers an alarm to prevent accidents caused by wire rope breakage.

The electrical protection system focuses on intelligent control, including an emergency stop button, phase sequence protector, and ground fault interrupter. The emergency stop button is designed with a mushroom head to ensure quick power shutdown in emergencies. The phase sequence protector monitors the phase sequence of the three-phase power supply to prevent motor reverse rotation due to incorrect wiring. The ground fault interrupter uses a differential current protection principle; when a leakage current exceeding 30mA is detected, it cuts off the circuit within 0.1 seconds to ensure operator safety.

Intelligent monitoring systems represent the future direction of electric hoist safety protection, utilizing IoT technology for remote monitoring and early warning. Smart sensors can real-time collect parameters such as motor temperature, vibration frequency, and wire rope wear, and perform fault prediction through edge computing. When abnormal data is detected, the system automatically sends alerts to the management terminal and generates a maintenance recommendation report. Some high-end models are also equipped with a video surveillance system, using AI algorithms to identify hazardous operations, upgrading from "passive protection" to "active warning."

II. In-depth Analysis of Safety Device Working Principles

Taking an overload limiter as an example, its core components include a load sensor, a signal processing unit, and an actuator. The load sensor uses strain gauge technology; when subjected to external force, the strain gauge deforms, changing its resistance. A Wheatstone bridge circuit converts the mechanical signal into an electrical signal. The signal processing unit amplifies, filters, and digitizes the electrical signal, then compares it with a preset threshold. When the threshold is exceeded, the electromagnetic relay in the actuator activates, cutting off the motor control circuit and triggering a visual and audible alarm. This design ensures real-time and accurate overload detection, effectively avoiding the lag in response of traditional mechanical overload limiters.

The safety design of the braking system is also worth exploring. Electric hoists typically use a dual brake design: the primary brake is a normally closed electromagnetic brake, using spring pressure for braking, automatically engaging when the motor is off. The secondary brake uses a hydraulic actuator, providing backup protection if the primary brake fails. The brake lining uses asbestos-free, environmentally friendly materials, ensuring braking performance while reducing environmental pollution. The brake clearance is maintained constant by an automatic compensation device, ensuring stable and reliable braking performance.

The wire rope safety system includes three modules: broken wire detection, fatigue life prediction, and lubrication maintenance. Broken wire detection uses electromagnetic induction, detecting changes in magnetic flux to identify broken wires. The fatigue life prediction model is based on the Palmgren-Miner linear cumulative damage theory, calculating remaining life based on load spectrum and cycle count. The lubrication system uses an automatic oiling device, injecting specialized grease into the wire rope at regular intervals and in controlled amounts, reducing friction and wear, and extending service life.

III. Safety Device Maintenance

The effectiveness of safety devices depends on a sound maintenance program. According to the "Regulations on the Safety Supervision of Special Equipment," electric hoists should undergo a comprehensive inspection monthly and a professional test quarterly. Daily maintenance should focus on key indicators such as the functionality of limit switches, brake performance, and the condition of the wire rope.

Limit switch maintenance requires regular cleaning of the contact points to prevent poor contact due to dust or oil. Brake maintenance involves monthly inspection of the brake lining thickness; replacement is necessary when wear exceeds 50% of the original thickness. The brake spring pressure should also be adjusted to ensure the braking torque meets design requirements. Wire rope maintenance requires daily inspection of the surface condition; damaged, rusted, or twisted ropes must be replaced immediately. Lubrication should use specialized grease, with complete lubrication performed every 200 operating hours.

Electrical system maintenance focuses on checking the tightness of terminal connections to prevent poor contact due to vibration. Phase sequence protectors and ground fault protectors should be tested monthly to ensure reliable operation. The intelligent monitoring system requires regular software updates and algorithm optimization to improve fault prediction accuracy.

IV. Safety Operating Procedures and Emergency Response

Standard operating procedures are crucial for safety. Operators must undergo professional training and obtain a special equipment operator certificate. During operation, the "inspect before lifting, observe during operation, and maintain after operation" principle must be strictly followed. Before lifting, confirm that the load weight does not exceed the rated capacity, inspect the lifting equipment, and ensure the limit switch and brake are functioning correctly. During operation, maintain clear visibility, avoid sudden starts and stops, and prohibit diagonal lifting. After the operation, raise the hook to a safe position, disconnect the power, and take measures to prevent rain and dust damage.

In an emergency, immediately press the emergency stop button and cut off the main power. Take appropriate emergency measures according to the type of accident: for a broken rope or falling object, evacuate surrounding personnel and set up a safety zone; for motor overheating, wait for the equipment to cool and then inspect the cooling system; for electrical faults, have a professional technician repair it. After an accident, conduct a comprehensive inspection to ensure safety before resuming operation.

V. Safety Technology Innovation

Safety devices for electric hoists are evolving towards intelligent and networked systems. A communication-based remote monitoring system can transmit real-time equipment status data and predict potential malfunctions through big data analysis. AI visual recognition technology can automatically identify whether operators are wearing safety equipment, ensuring safe operating procedures. Blockchain technology can establish a traceability system for the entire equipment lifecycle, guaranteeing the authenticity and verifiability of maintenance records.

The application of new materials provides the foundation for upgrading safety devices. Hooks made of carbon fiber composite material have a higher strength-to-weight ratio, reducing equipment weight and enhancing safety. Nanocoating technology improves the wear resistance and corrosion resistance of wire ropes. Intelligent lubrication systems using phase-change materials automatically adjust lubrication based on temperature changes, improving lubrication efficiency.

Conclusion

Safety devices for electric hoists are a crucial safeguard for industrial production safety. Through scientific classification, in-depth analysis, and standardized maintenance, a multi-layered, comprehensive safety protection network can be established. With continuous technological innovation, electric hoist safety devices will evolve towards intelligence and networking, providing stronger technical support for industrial safety. Enterprises should establish sound safety management systems, strengthen operator training, and conduct regular safety drills, forming a comprehensive "people-machine-environment" safety management system to strengthen industrial safety.
