European-style Wire Rope Hoists: Compact and Efficient Lifting Solutions

In modern factories and construction sites, a type of lifting equipment from Europe is quietly improving operational efficiency and safety with its outstanding performance and compact design.

In modern industrial production and construction, the safety and reliability of lifting equipment are always core concerns. As an important category of lifting machinery, European-style wire rope hoists, with their unique design concept and advanced technical standards, are increasingly becoming the mainstream choice in the industry.

Compared to traditional lifting equipment, European-style wire rope hoists exhibit significant advantages in terms of structural compactness, safety performance, and applicability, and are widely used in various industrial scenarios.

I. Design Features: Compact, Lightweight, Modular

The core advantage of European-style wire rope hoists lies in their ingenious structural design. This hoist adopts a rectangular appearance and a compact square structure, which is not only more visually modern but, more importantly, achieves perfect dimensional balance.

This design allows the equipment to maximize its working efficiency within a limited space, making it particularly suitable for space-constrained industrial environments.

Low headroom design is another key feature of European-style wire rope hoists, effectively utilizing the under-beam height of single-girder cranes to maximize working space.

The modular design concept simplifies maintenance and significantly reduces spare parts, lowering long-term operating costs.

European-style wire rope hoists offer a wide tonnage range to meet diverse needs. They can be installed individually on I-beams or integrated with electric or manual single-girder, double-girder, cantilever, and gantry cranes.

II. Technical Advantages: Superior Performance and Reliable Operation

In terms of performance, European-style wire rope hoists excel. They offer a wide range of hook paths, lifting speeds, and working levels based on hourly start-up requirements and lifting load cycles.

This speed flexibility allows European-style wire rope hoists to adapt to different operational needs, improving work efficiency.

As a critical component, the quality of the wire rope directly affects the safety and service life of the entire system.

These wire ropes have precise diameters (e.g., 6.20–6.40 mm), with lay ratios controlled between 6 and 8, and a minimum breaking strength exceeding 46.0 kN.

A high safety factor is another highlight of European-style wire rope hoists. For example, some models boast a safety factor of up to 4.6, far exceeding basic requirements, providing additional safety for lifting operations.

III. Safety Performance: Multiple Protections, Comprehensive Protection

European-style wire rope hoists are meticulously designed for safety, equipped with multiple safety protection devices.

Standard safety configurations include rising and falling limit switches, overload limiters, and emergency stop switches, short-circuit protection, undervoltage protection, and phase sequence protection in the control section.

Rising is equipped with deceleration, phase reversal, and stop protection limit switches, while the lower limit includes a stop limit switch. These designs significantly enhance operational safety.

Regarding the electrical system, European-style wire rope hoists typically use IP55-rated electrical cabinets, which are not only dustproof and waterproof but also rationally sized, providing excellent protection for all components.

The application of low-voltage control (e.g., 48V) further enhances operational safety.

In addition, the rotary height limiter is not only highly reliable and long-lasting, but also easy to maintain and adjust. The rotary hook with a safety lock ensures a secure connection during lifting and prevents accidental disengagement.

IV. Application Scenarios: Widely Applicable and Versatile

European-style wire rope hoists have an extremely wide range of applications. They can be used in bridge cranes, gantry and semi-gantry cranes, single-girder and double-girder cranes, and many other applications.

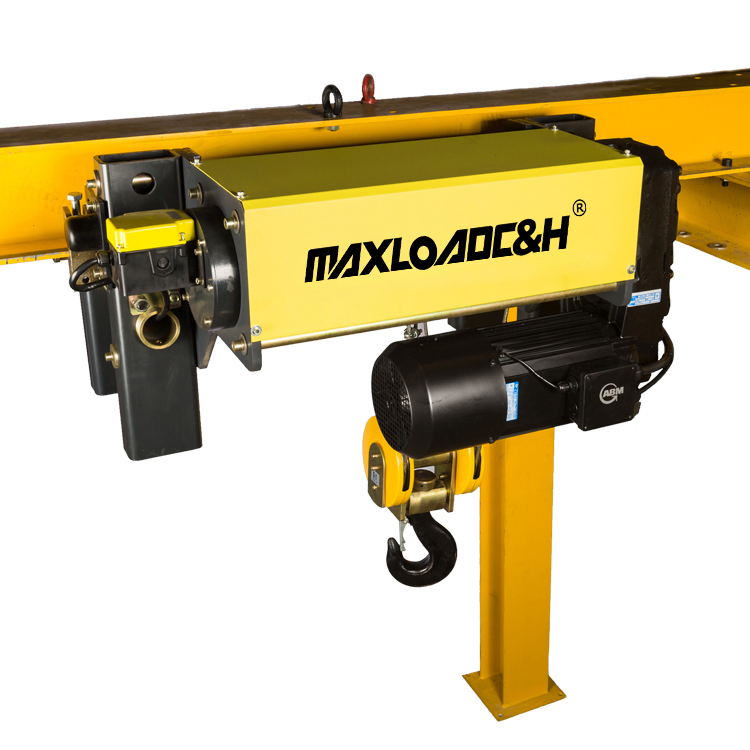

In single-girder crane systems, European-style wire rope hoists offer several options: standard headroom hoists are suitable for situations where there are no special requirements for utilizing the height under the beam; low headroom hoists effectively utilize the height under the beam of a single-girder crane; rotary hoists are suitable for lifting and moving goods on beams with turns.

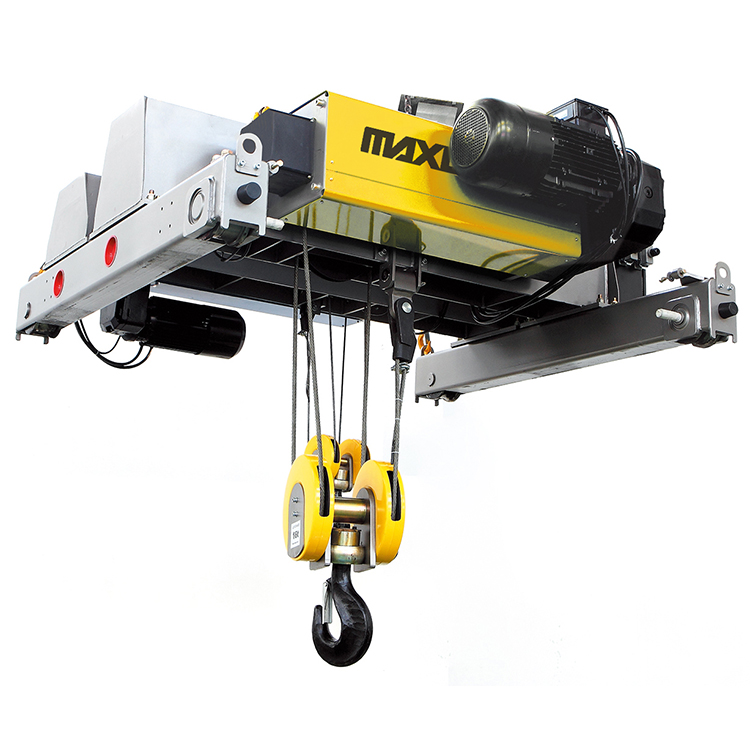

In double-girder crane systems, the compact standard double-girder trolley offers a cost-effective solution; designs with trolley frames enable various standardized applications, such as double-lifting trolleys, sunken trolleys, and rotating trolleys;

Sunken double-girder hoists are suitable for situations where the distance between the main beam and the roof is insufficient.

Besides conventional environments, European-style wire rope hoists can adapt to extreme working environments, such as galvanizing plants, high-acid environments, and dusty environments.

Through special surface treatments and sealing designs, these hoists can maintain reliable performance under harsh conditions.

V. Maintenance and Standards: Standardized Operation, Long-Term Reliability

Daily maintenance of European-style wire rope hoists must follow standardized procedures. During daily, monthly, and annual inspections, any parts that do not meet requirements should be repaired, adjusted, or replaced immediately.

During maintenance, replacement parts should be of the same material and performance as the original parts; when structural components require welding repair, the materials, welding rods, and welding quality should all meet the quality standards of the original structural components.

Lubrication management is crucial for ensuring the long-term reliable operation of European-style wire rope hoists. Sufficient lubricating oil must be maintained during equipment use, and the lubricating oil must be kept clean, free from impurities and dirt.

It is worth mentioning that some European-style wire rope hoists use lifting and traveling gearboxes with lifetime lubrication, greatly reducing maintenance workload.

Wire rope maintenance has its specific requirements. When oiling the wire rope, a stiff-bristled brush or small wooden pieces should be used; it is strictly forbidden to apply oil directly to a working wire rope by hand.

The inspection and scrapping standards for wire ropes should be implemented according to the relevant specifications, such as CB/T5972-1986 "Practical Specifications for Inspection and Scrapping of Wire Ropes for Lifting Machinery".

European standards provide clear guidance on the use and maintenance of wire ropes. For example, EN 12385-3:2018 specifies the types of information on wire rope use and maintenance, which should be provided by the wire rope manufacturer or included in the manufacturer's manual accompanying the machine.

VI. Future Development and Market Prospects

With the continuous improvement of industrial development requirements for safety, efficiency, and space utilization, the market prospects for European-style wire rope hoists are broad. Its compact structure and light weight perfectly meet the stringent requirements of modern industry for space utilization and energy efficiency.

Intelligentization is another development direction for European-style wire rope hoists. Equipped with standard control systems and safe operation cycle monitoring, users can understand the actual usage of the equipment at any time, facilitating preventative maintenance.

Some high-end models are even equipped with OWL monitors for real-time monitoring of equipment status.

Improved environmental adaptability will also drive technological innovation in European-style wire rope hoists. Manufacturers have developed specialized models to meet the needs of special environments, such as high acidity, high temperature, or dusty environments.

In the future, we can expect more customized solutions for specific industries.

Conclusion:

With the continuous development of industrial technology, the design concepts and technological innovations of European-style wire rope hoists will continue to lead the progress of the lifting equipment field. They not only represent an efficient material handling solution but also embody modern industry's relentless pursuit of safety, reliability, and space efficiency.

In future industrial scenarios, this compact yet powerful lifting equipment will continue to play an indispensable role, providing safe and reliable lifting solutions for various industries.
