Electric Chain Hoist: The Muscle and Wisdom of Modern Industry

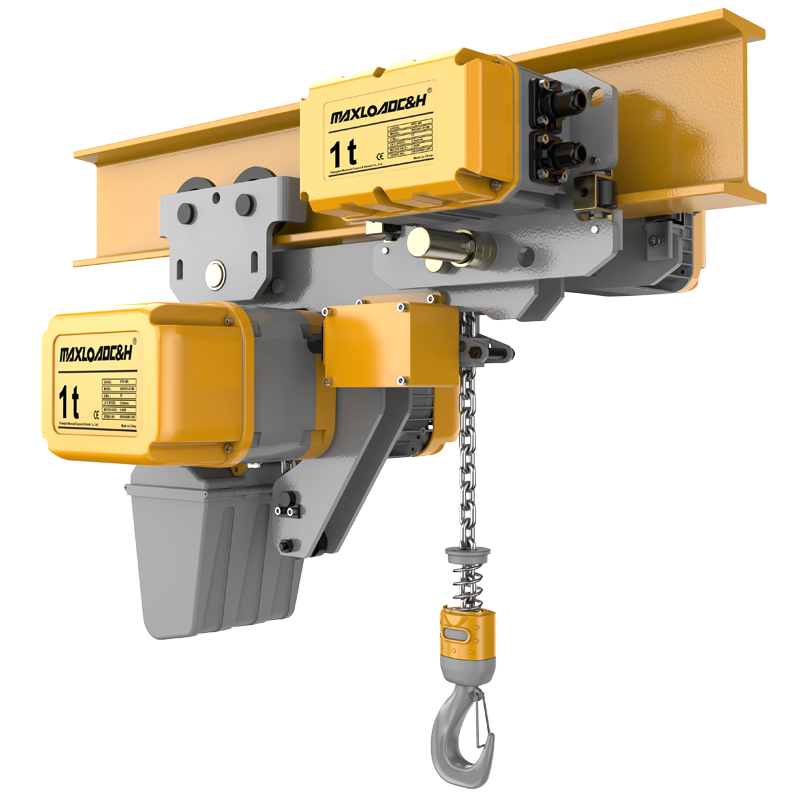

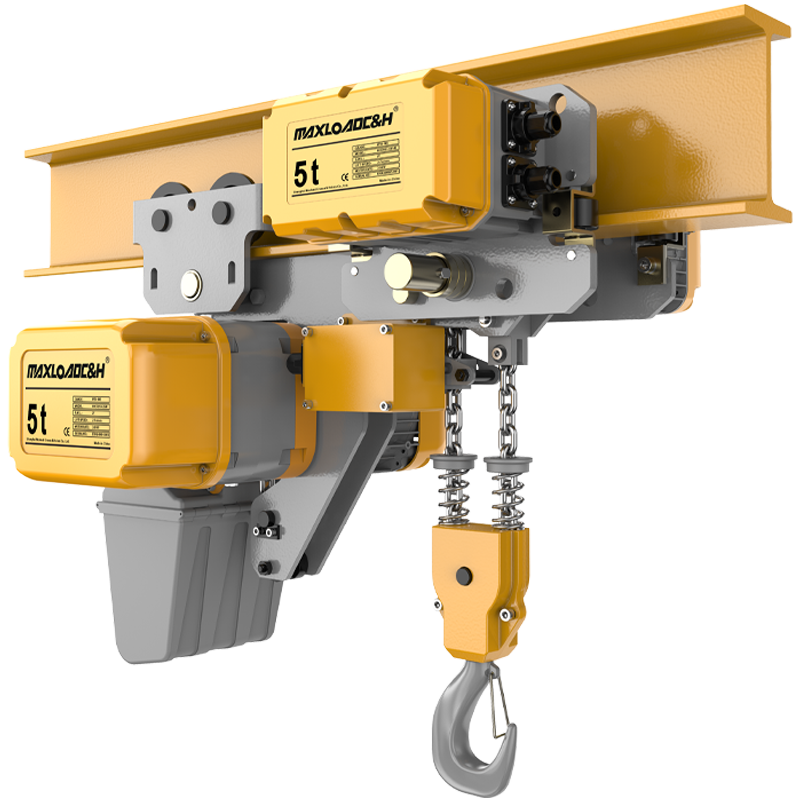

In modern factory workshops, bustling construction sites, and massive logistics warehouses, we often see a seemingly simple yet incredibly powerful figure—the electric chain hoist. Suspended silently on I-beams, with a motor as its heart and a chain as its arms, it precisely and tirelessly lifts, moves, and lowers tons of heavy objects. It is not merely a tool that simply replaces manual labor; it is an indispensable combination of "muscle and wisdom" in modern industrial production, a key piece of equipment for improving efficiency and ensuring safety.

I. Core Unveiling: A Mechanical Symphony of Power and Beauty

As the name suggests, an electric chain hoist is a lifting device driven by electricity, using a series of precise mechanical transmissions to drive an alloy chain for lifting operations. Its core working principle is a symphony of power and beauty.

1. Power Source: The Motor

The motor is the "heart" of the entire hoist. When the power is connected, electrical energy is converted into powerful rotational kinetic energy. To adapt to diverse industrial environments, electric chain hoists typically employ three-phase asynchronous motors or single-phase motors, possessing strong starting torque and overload capacity to ensure smooth operation even under heavy loads.

2. The Soul of Transmission: The Reduction Mechanism

The high speed and low torque output of a motor are not directly suitable for lifting. Here, a precision reduction mechanism acts as a "gearbox." Through multi-stage gear transmission, it progressively reduces the motor's high speed while amplifying the torque, ultimately converting it into a powerful force on the chain drum sufficient to lift several tons. The manufacturing precision of this reduction system directly determines the hoist's operating efficiency, noise level, and service life.

3. The Execution Arm: Chain and Sprocket

Unlike wire rope hoists, chain hoists use chains made of high-quality alloy steel. These chains undergo a special heat treatment process, resulting in extremely high strength, toughness, and wear resistance. The chain is wound around a specially designed sprocket, and its meshing method allows for a larger load-bearing area, more even force distribution, and reduced risk of sudden breakage, ensuring extremely high safety. The chain itself is flexible, easy to wind and store, and occupies little space.

4. Safety Shield: Braking System and Protective Devices

Safety is the lifeline of lifting operations. Electric chain hoists are typically equipped with a dual braking system:

Mechanical Brake: Commonly uses disc or conical rotor brakes. When the motor is de-energized, the brake immediately engages under spring action, preventing the load from falling. This is the most fundamental safety guarantee.

Electrical Brake (Optional): Achieves rapid and smooth braking through technologies such as reverse current, reducing braking impact.

In addition, a series of protective devices form a comprehensive safety net:

Upper and Lower Limit Switches: Automatically cut off power when the hook reaches its highest or lowest limit position, preventing "overshooting" or excessive lowering that could cause chain malfunction.

Overload Protector: Automatically stops operation when the load exceeds the rated weight, protecting the motor and mechanical structure from damage.

Phase Sequence Protection: Prevents loss of control due to reversed power phase sequence.

Emergency Stop Button: Allows immediate disconnection of the main power supply in an emergency.

II. Unique Advantages: Why is it the Darling of Industry?

Compared to other lifting equipment, electric chain hoists possess a series of irreplaceable advantages:

Compact Structure and Light Weight: Due to its efficient chain storage method, the overall structure is very compact, and its weight is far lower than that of wire rope hoists of the same tonnage. This means it has lower requirements for factory support structures, is more flexible in application, and can even be installed in confined spaces.

High Reliability and Easy Maintenance: Alloy chains are wear-resistant, impact-resistant, and have a long service life. Its structure is relatively simple, and daily maintenance mainly involves lubrication and inspection, resulting in low maintenance costs.

Good Safety: Chain breakage is usually a gradual process, with signs such as elongation and deformation, unlike the sudden breakage of wire ropes. Combined with a sophisticated dual braking system, it boasts an excellent safety record.

Precise Positioning and Strong Controllability: Chain hoists using frequency conversion control can achieve extremely low and stable crawling speeds, facilitating precise positioning and installation of heavy objects, making them particularly suitable for precision assembly, mold installation, and other similar scenarios.

III. Future Trends: Intelligentization and Integration

With the advancement of Industry 4.0 and intelligent manufacturing, electric chain hoists are constantly evolving, being endowed with more "intelligence":

Intelligent Monitoring and Early Warning: Integrated sensors monitor data such as load weight, motor temperature, running time, and chain wear status in real time, uploading this data to the cloud via the Internet of Things. This enables predictive maintenance, issuing warnings before failures occur and minimizing unexpected downtime.

Precise Positioning and Anti-Sway Control: Through advanced frequency converters and control algorithms, not only can centimeter-level or even millimeter-level precise positioning be achieved, but the swaying of the hook and load during operation can also be effectively suppressed, greatly improving operational efficiency and safety.

System Integration and Automation: Modern chain hoists are no longer isolated devices; they can be easily integrated with automated cranes and the entire factory's production management system to achieve fully automated material handling processes, becoming an important link in the "unmanned workshop."

Optimized Human-Machine Interaction: User-friendly wireless remote controls, clear status indicator lights, and a simple control interface make operation more intuitive and convenient, reducing the labor intensity and skill threshold for operators.

Conclusion：

The electric chain hoist, this seemingly simple industrial device, is actually a culmination of the wisdom of mechanical, electrical, and materials science. With its robust chain, it connects the immense power of modern industry; with its precise control, it interprets the future direction of intelligent manufacturing. From its initial simple replacement of power to today's comprehensive solutions integrating power, precision, intelligence, and safety, the electric chain hoist has always been the silent and reliable cornerstone behind industrial production. It may not often be in the spotlight, but it truly supports the weight of modern civilization and is undoubtedly the "backbone of industry."
