Electric Chain Hoists: The High-Efficiency Heart of Modern Cranes

In modern factories, warehouses, and construction sites, electric chain hoists, with their compact structure and powerful performance, are becoming indispensable core equipment in lifting operations.

As a representative of lightweight lifting equipment, electric chain hoists consist of a motor, transmission mechanism, and sprockets. The body is typically made of a high-strength tensile shell or die-cast aluminum shell, manufactured through thin-wall extrusion molding, achieving a small size, light weight, and high strength.

This equipment, with its superior performance and wide range of applications, has become an important part of the modern lifting machinery field.

I. High-Precision Structure: Compact Body Contains Powerful Capabilities

The design of the electric chain hoist integrates precision engineering and practical functions, with its core structure meticulously optimized.

The body uses high-strength die-cast aluminum or tensile shell, while the internal gears undergo high-temperature quenching treatment, significantly improving wear resistance and toughness.

The transmission system is the core technology of the electric chain hoist. It employs a two-stage coaxial transmission gear mechanism within a sealed gearbox, equipped with a long-life oil bath lubrication system, effectively reducing gear wear and extending the equipment's service life.

Regarding safety systems, the electric chain hoist is equipped with multiple protection devices. The powder metallurgy clutch automatically slips under overload conditions, providing overload protection; the disc-type DC electromagnetic brake provides reliable braking force, ensuring smooth, rapid, and low-noise braking.

These designs enable the electric chain hoist to operate stably in a wide temperature range of -20℃ to +60℃, with some models even achieving an IP55 protection rating, adapting to various harsh working conditions.

II. Performance Comparison: The Technical Debate Between Chain Hoists and Wire Rope Hoists

In the field of lifting equipment, electric chain hoists and wire rope hoists each have their own characteristics, meeting the needs of different scenarios.

From a structural volume perspective, because electric chain hoists use sprocket drive, the axial dimension of the sprocket is much smaller than that of the drum in wire rope hoists, making them more compact for the same lifting capacity.

Especially when the lifting height increases, the drum of a wire rope hoist needs to be significantly lengthened, while the size advantage of a chain hoist becomes even more apparent.

In terms of operational stability, wire rope electric hoists perform better, while chain electric hoists win due to their lightweight and maneuverability.

III. Application Scenarios: Versatile Adaptability from Workshops to Large-Scale Projects

Chain electric hoists have extremely wide applications, covering almost all industries requiring lifting operations.

In the industrial sector, they are widely used in large factories, warehouses, logistics facilities, docks, mines, and other locations for lifting or loading/unloading goods, and can also be used for maintaining large machinery.

In the construction industry, a special type of chain hoist, known as a group-lifting electric hoist, is widely used in climbing scaffolding lifting and large oil tank group lifting operations.

This type of hoist features slow lifting speed, light weight, high component hardness, and low wear, making it particularly suitable for low-speed, short-stroke material handling.

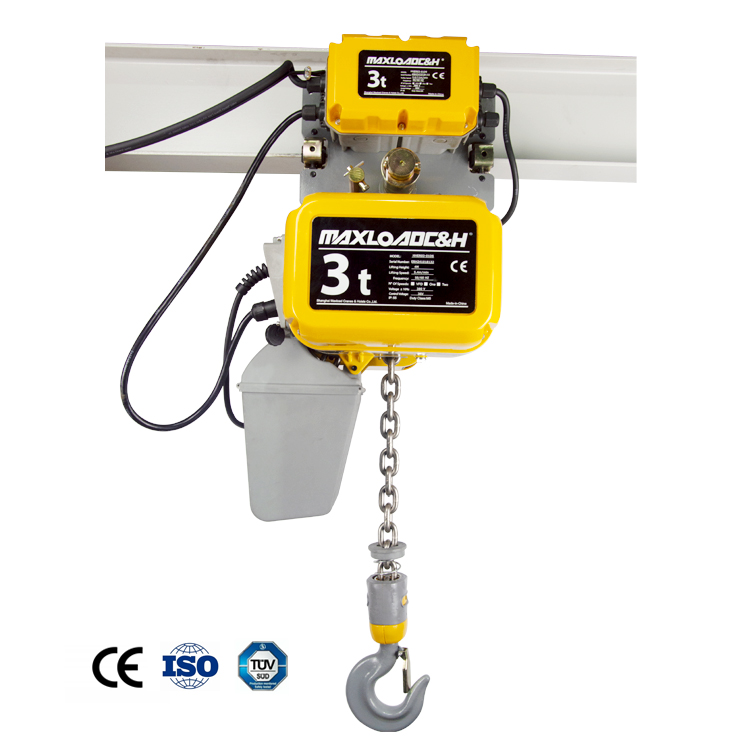

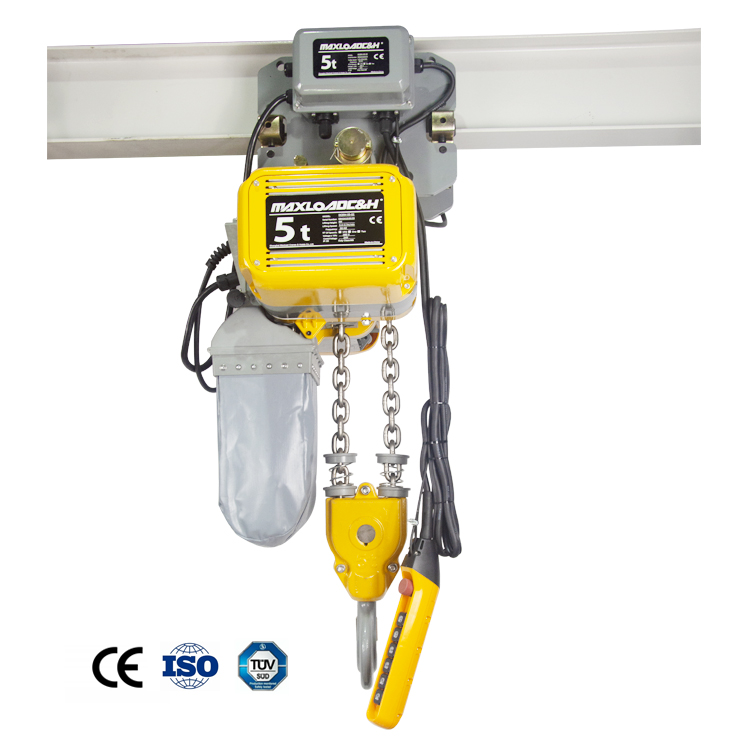

Electric chain hoists offer extremely flexible installation options, allowing for both fixed suspension and movement with electric or manual/pull-operated monorail trolleys.

They can be installed on suspended I-beams, curved tracks, jib crane rails, and fixed lifting points to lift heavy objects.

With technological advancements, modern electric chain hoists integrate intelligent functions such as temperature monitoring, dual-speed lifting, and fault diagnosis, further expanding their application boundaries.

IV. Safety Regulations: Scientific Operation and Maintenance of Precision Equipment

Strict safety regulations must be followed when using electric chain hoists to ensure the safety of equipment and personnel.

Before the operation, a no-load test lift must be performed to check if the machine is functioning normally. Carefully inspect the chain, hook, and lifting mechanism for damage.

Load limitation is paramount for safe operation. Never exceed the rated load or the rated number of closing cycles per hour.

Newly installed or reinstalled electric hoists after disassembly and inspection require a static load test at 125% of the rated load, lifting the hoist approximately 100 mm off the ground for 10 minutes.

During operation, it is not permitted to simultaneously press two hand-operated buttons that would cause the electric hoist to move in opposite directions.

No one is allowed to stand under the hook during operation. The operator should actively avoid this area and prevent unauthorized personnel from entering the work area.

Regarding maintenance, the electric hoist must be inspected regularly by designated personnel, and any malfunctions must be rectified promptly.

Sufficient lubricating oil must be maintained during use, and the lubricating oil must be kept clean, free of impurities and dirt.

After work is completed, the main power supply must be disconnected to ensure the equipment is completely powered off.

V. Intelligent Development: Future Trends of Chain Hoists

With the improvement of industrial automation, electric chain hoists are developing towards greater intelligence, safety, and professionalism.

Integrated safety systems will become standard configurations. Safety devices such as temperature monitoring devices and precise limit switches are gradually being applied to electric chain hoists.

Specialized adaptation is also an important development direction. Specialized models of electric chain hoists have been developed for special working conditions such as high humidity, low temperature and extreme cold, tropical climates, or corrosive environments.

Improved control precision is also noteworthy. Through the application of frequency converter control technology, modern electric chain hoists can achieve precise positioning, even reaching centimeter-level control accuracy.

In terms of functional integration, advanced functions such as dual-speed lifting and fault diagnosis are becoming increasingly common, greatly improving the performance and ease of use of electric chain hoists.

With the continuous development of industrial technology, electric chain hoists have gradually integrated intelligent functions such as temperature monitoring, dual-speed lifting, and fault diagnosis.

Their protection rating can reach IP55, enabling them to withstand harsh environments ranging from -40℃ to +60℃.

From traditional factories and warehouses to modern cleanrooms and explosion-proof environments, electric chain hoists, with their superior performance and reliable quality, continue to provide safe and efficient lifting solutions for various industries.
