Electric Hoists – The "Three Musketeers" of the Industrial Lifting Field

In modern industrial production, equipment installation, warehousing and logistics, and even major construction sites, the presence of one or more types of lifting equipment is always indispensable. They function like steadfast "industrial hands," precisely moving heavy materials and positioning them safely, greatly liberating human labour and enhancing operational efficiency and safety. Among the numerous lifting devices, electric chain hoists, explosion-proof hoists, and wire rope hoists form the core force in lifting operations, thanks to their distinct technical characteristics and wide-ranging application fields.

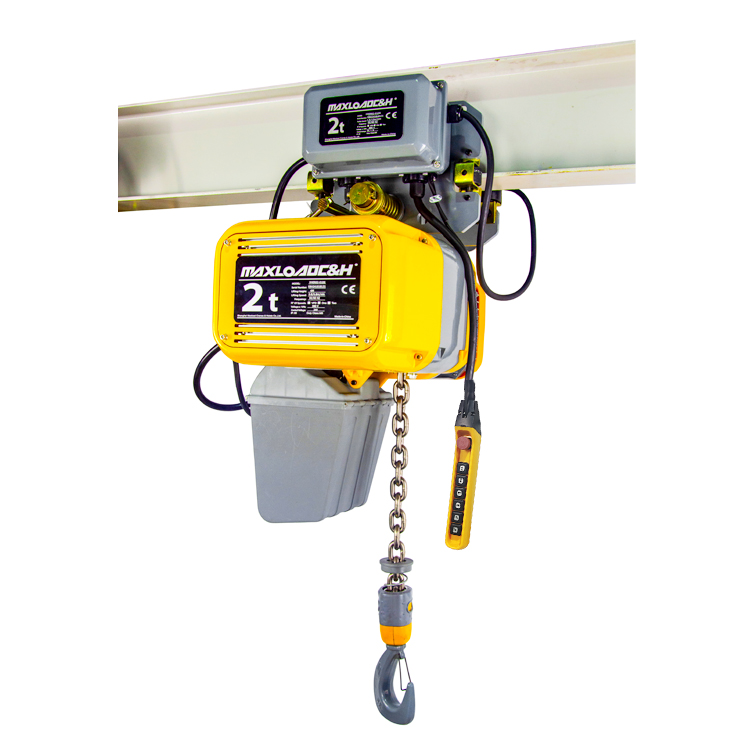

I. Electric Chain Hoist: The Compact and Efficient All-Rounder

As the name suggests, an electric chain hoist is a light-duty lifting device that uses an electric motor as its power source, driving an alloy steel chain for lifting and lowering operations via a precise transmission system. Its core working principle lies in this: the rotational force of the motor, after being slowed down and torque-increased by the gear set, is transmitted to the sprocket, which drives the sturdy lifting chain to wind or unwind, thereby achieving the lifting and lowering of the load.

The most prominent advantages of this type of hoist are its compact structure and light weight. Since high-strength alloy steel chain is used as the load-bearing medium, its winding radius is small, allowing the entire unit, especially the lifting mechanism, to be designed very compactly. This gives it unparalleled installation and operational flexibility in space-constrained environments, such as low-ceiling workshops, narrow passageways, or equipment-dense production lines. Additionally, the chain itself possesses a degree of flexibility, is relatively tolerant of eccentric loading conditions, and its surface allows for easy inspection of damage.

In terms of application scenarios, the electric chain hoist is a true "all-rounder." It is widely used for mould handling and equipment maintenance in machining workshops; for component lifting on assembly lines; for stacking and retrieving goods in warehouses; and is also commonly found in various maintenance workshops and automotive service centres. Its lifting capacity range is typically broad, and lifting speeds can be chosen as single or dual-speed according to requirements, meeting the needs of most conventional material handling. Regarding maintenance, regular lubrication of the chain, inspection for wear and elongation, and ensuring the electrical system functions properly are key to maintaining its good condition.

II. Explosion-Proof Hoist: The Safety Guardian in Hazardous Environments

An explosion-proof hoist does not refer to a single hoist type, but rather to a category of equipment that incorporates special explosion-proof design features into either electric chain hoists or electric wire rope hoists. It is intended for use in potentially hazardous environments where flammable or explosive gases, dusts, or vapours may be present. Its core mission is to absolutely prevent the generation of any sparks or high-temperature heat sources that could ignite an explosive mixture.

To achieve this paramount safety objective, explosion-proof hoists implement rigorous measures at multiple levels: Firstly, in the electrical components, all elements that could potentially produce electrical sparks—such as the motor, control box, and push-button switches—are enclosed within special explosion-proof housings. These housings can withstand internal explosion pressure and prevent internal flames and hot gases from propagating to the external environment. Secondly, for mechanical parts, measures are taken to prevent mechanical friction or impact from generating sparks, such as using bronze or special alloy for explosion-proof gears, brake rings, etc. Thirdly, the entire unit is well-grounded to eliminate the risk of static electricity accumulation. Common explosion-proof ratings, such as Ex d IIC T4 Gb, clearly define the applicable explosive gas atmosphere category, group, and the equipment's maximum surface temperature group.

Therefore, explosion-proof hoists are lifeline equipment in industries such as chemical, pharmaceutical, paint and coatings, and grain processing. In production, filling, warehousing, and maintenance operations within these sectors, hoists with the corresponding explosion-proof rating must be used to ensure the safety of personnel and facilities. When selecting one, it is imperative to strictly base the choice on the hazardous area classification of the work site and the specific characteristics of the explosive substances present, opting for a product with the corresponding explosion-proof rating and temperature group.

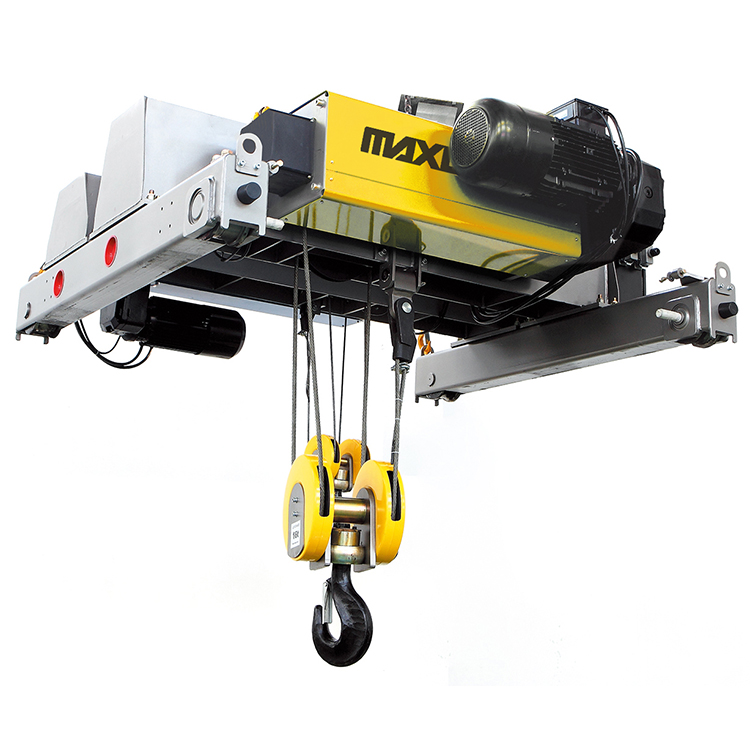

III. Wire Rope Hoist: The Powerful Engine for Heavy Loads and High Lifts

The electric wire rope hoist uses steel wire rope as its load-bearing and lifting medium, and its structure differs significantly from that of chain hoists. Power is transmitted from the motor through the reducer to the drum, which winds the multi-layered wire rope, guiding it via sheaves to achieve the hook's lifting and lowering. Based on structural layout, they are mainly divided into traditional drum types and the more compact European-style (modular) designs.

The strengths of the wire rope hoist lie in its greater lifting height, wider lifting capacity range, and enhanced durability. The wire rope drum can accommodate much longer rope, easily achieving lifts of tens or even hundreds of meters, making it highly suitable for tall workshops, construction sites, hydropower station construction projects, ports, and terminals—anywhere requiring large-height lifting. Its lifting capacity range is extensive, making it a mainstay for heavy equipment lifting and large component installation. High-quality wire rope features high strength, wear resistance, and good fatigue resistance. Coupled with proper drum groove design and effective multi-layer winding technology, this ensures reliability during long-term heavy-duty operations. Additionally, smooth operation and relatively low noise levels are also among its advantages.

It is commonly found in heavy machinery manufacturing, iron and steel metallurgy, power plant construction, shipbuilding, bridge construction, logistics yards, and other fields involving heavy load handling. Maintenance focus lies on the wire rope: regular inspection for broken wires, wear, deformation, and corrosion is necessary, along with strict adherence to specifications for lubrication and replacement. Simultaneously, the condition of the drum, sheave assembly, and the effectiveness of the brake must be closely monitored.

IV. Selection Guide

In practical selection, the following logical path should be followed:

Environment First: First, determine if the operating environment is a flammable/explosive hazardous area. If yes, an explosion-proof hoist meeting the explosion-proof rating requirements for that area must be selected. Safety is the sole prerequisite.

Parameter Matching: Once the safety environment is confirmed, filter options based on core parameters such as required maximum lifting capacity, lifting height, duty class, and installation space constraints.

Type Decision：

If the workspace is confined, lifting capacity is moderate, and sensitivity to equipment weight and cost is high, prioritise the electric chain hoist.

If a large lifting height, high lifting capacity, or the pursuit of smoother operation and extremely high durability is required, the wire rope hoist should be chosen. Modern European-style wire rope hoists also show significant improvements in compactness.

Additional Considerations: Consider whether frequency control (for precise positioning and soft starting) is needed, dual-speed operation is required, as well as auxiliary functions like Ingress Protection (IP) rating and remote control operation.

Conclusion

Electric chain hoists, explosion-proof hoists, and wire rope hoists are like three "industrial musketeers," each with its own unique skills, fulfilling their respective duties in the vast field of material handling, safeguarding efficiency and safety. The chain hoist excels in flexibility, the explosion-proof hoist's soul is safety, and the wire rope hoist triumphs with strength and height. With the continuous advancement of smart manufacturing and industrial safety standards, these three types of equipment are also constantly evolving, moving towards greater intelligence, reliability, and user-friendliness. A profound understanding of their principles and characteristics is essential for making the wisest choice based on actual working conditions, enabling these "industrial hands" to propel various industries forward more powerfully and steadily.
