Practical Analysis of Workshop Material Handling

If you've spent time in a factory workshop, you may notice an interesting phenomenon: the bottleneck in many production lines isn't the processing speed of the equipment, but how materials are moved from point A to point B. This is especially true for semi-finished goods, fixtures, and repair parts—not too heavy, not too light—awkward to carry by hand, yet too tight for a forklift to turn around. In such cases, an electric hoist combined with a jib crane becomes the most practical solution.

What Does This Combination Do?

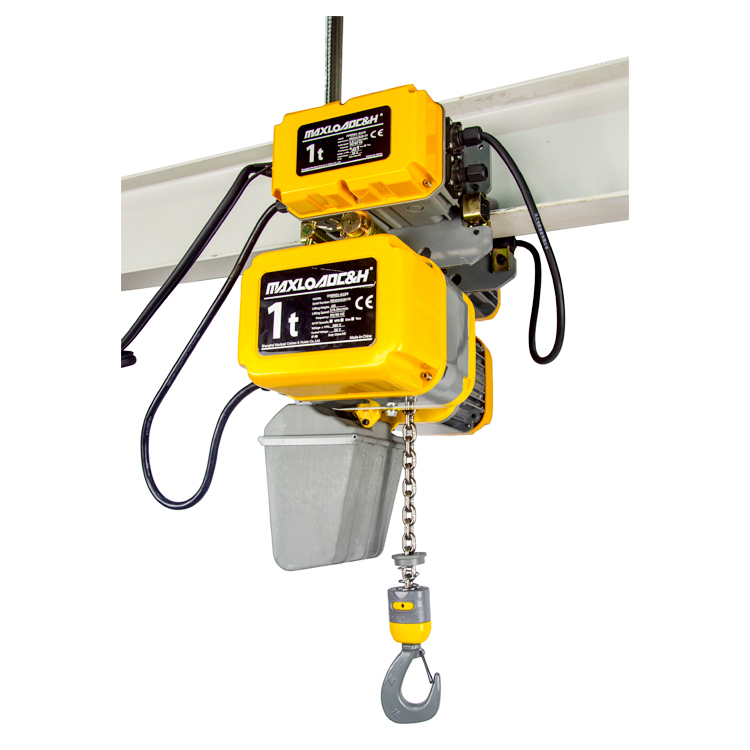

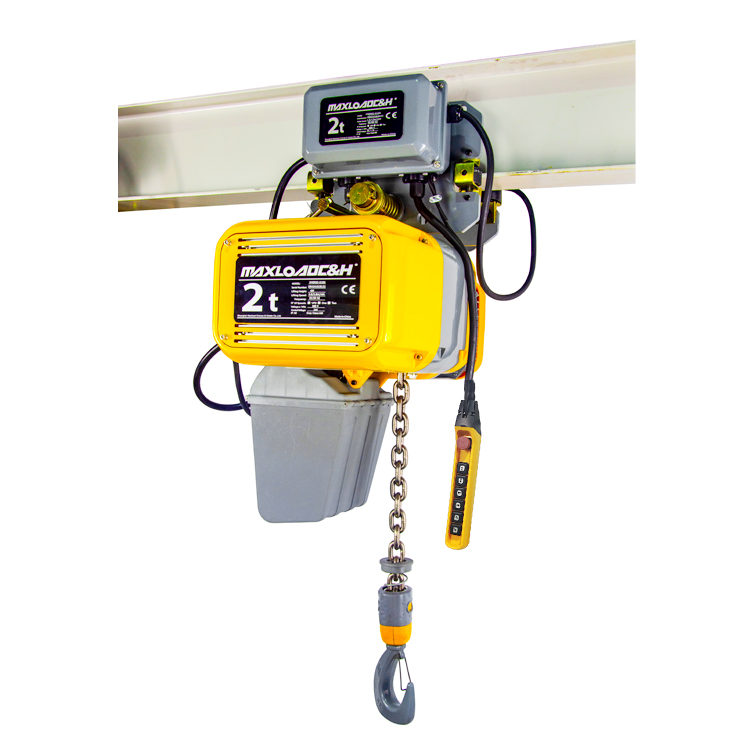

Simply put, a jib crane is a cantilever arm that rotates around a column, covering a Sector-shaped Work Area. The electric hoist hangs on the cantilever arm, responsible for lifting/lowering and horizontal movement along the arm. Together, they enable three-dimensional material handling within a fixed range—up/down, left/right, and forward/backward.

Unlike an overhead crane that needs to be mounted across the entire factory ceiling, a jib crane is much more flexible to install. You only need a sufficiently sturdy column, or it can be directly fixed to a concrete foundation; some light-duty models can even be wall-mounted. This means you can install one next to a specific workstation without altering the main structure of the workshop.

Typical Application Scenarios

Workstation Feeding on Assembly Lines

This is the most common use. For example, on an electric motor assembly line, each station requires a constant supply of parts such as stators, rotors, and end covers. Place a jib crane next to the station; the electric hoist lifts the bin from a pallet to a convenient height for the worker to pick parts, then removes the empty bin after use. The entire process doesn't occupy floor aisles or interfere with other stations.

I’ve seen a gearbox manufacturer where the assembly shop used hydraulic pallet trucks for material supply. The floor was covered with wheel marks, and ankle injuries were common. Later, they equipped each assembly station with a small jib crane. Workers could operate it themselves, with material bins suspended at a comfortable height, increasing efficiency by over 30%.

Mold Change and Maintenance

In injection molding and stamping shops, molds are heavy, often several hundred kilograms to two tons. Changing molds is a frequent and dangerous task. Without dedicated lifting gear, workers often use pry bars and manual chain hoists, risking damage to the mold's parting surface and more dangerously, potential injury from falling molds.

Install a jib crane next to each injection molding machine or press. Swing the arm over the machine, lift the mold with the electric hoist, swing it out, and place it on a nearby rack. Installing a new mold works in reverse. The key is that one person can do this without calling for an overhead crane operator or waiting for a forklift.

A friend who does mold maintenance mentioned that the jib crane in their repair area is used even more frequently than their machine tools. They need to disassemble, inspect, and repair a dozen molds every day, each requiring lifting on and off the bench. They chose a two-speed electric hoist—slow speed for alignment, fast speed for lifting/lowering—saving considerable time.

Workpiece Positioning in Welding Stations

When welding large structural parts, the workpiece needs to be constantly turned and repositioned to reach all weld seams. Using a jib crane and electric hoist, you can lift the workpiece, flip it in the air, or hold it at a certain angle for the welder to work. This small-range operation is much more agile than using an overhead crane.

Manufacturers of pressure vessels know that aligning the end cap with the shell is a delicate job. Using a jib crane, you can slowly bring the end cap toward the shell; the electric hoist's inching function allows millimeter-level movement, much easier to control than a large overhead crane.

Equipment Repair and Maintenance

Repairing factory equipment often requires removing large components, such as disassembling a gearbox or pulling an electric motor rotor. These parts are often in tight spaces where a forklift cannot enter, and an overhead crane cannot reach. Install a jib crane in an appropriate location in a dense equipment area; swing the arm to cover several machines.

Maintenance workshops typically have a jib crane because repairing pumps, motors, and fans all require disassembly and assembly. Without a lifting device, you rely entirely on pry bars and chain blocks, leading to low repair efficiency and a higher risk of injury.

Key Points in Selection

How to Determine Working Radius

The cantilever arm length of a jib crane commonly ranges from two to five or six meters, with larger lengths possible for special needs. The choice depends on your coverage requirements—do you need to serve multiple workstations? How far is the material storage area from the operation area?

A principle: longer is not always better. A longer arm increases torque on the column and foundation, significantly raising costs, and also increases rotational inertia, making control harder. In practice, it's enough to cover your work area plus a margin of 300-500 mm.

Don't Over-Design the Lifting Capacity

Many people tend to think "what if we need to lift heavier things later," and end up selecting a capacity far larger than their actual needs. A 2-ton jib crane versus a 1-ton model has much heavier structural members and a larger electric hoist, resulting in a completely different feel during operation. Worse, a large-capacity hoist used for small loads often has a slow lifting speed, making it impractical.

Select based on your actual maximum load multiplied by 1.2-1.3 times. If you truly need to lift heavier items later, add another larger crane; use each for its own purpose.

Rotational Ease Is Often Overlooked

A jib crane should rotate smoothly and easily; under normal conditions, you should be able to push the arm with one hand. If you choose a product with high rotational resistance, workers will avoid using it because it's a hassle, or they'll push and pull violently, creating safety hazards.

Manual or electric rotation? For small coverage areas and low frequency of use, a manual is sufficient. If you need to rotate hundreds of times a day, or if the lifted load is significantly off-center, electric rotation may be considered.

Foundation Is a Hidden Cost

Column-mounted jib cranes have requirements for the floor foundation. Light-duty models might only need expansion bolts into the concrete floor, but heavy-duty ones require a dedicated concrete foundation. Calculate this cost before purchasing the equipment; sometimes the foundation costs more than the crane itself.

Wall-mounted types save the column and foundation, but require the wall to be load-bearing or have steel structural columns of sufficient strength. Have a structural engineer verify before installation.

Practical Safety Operation Tips

Never Overload – That's the Bottom Line

This goes without saying, but in real production, schedule pressure often leads to violations. Electric hoists generally have overload protection, but protection is not foolproof. A common issue is that workers misestimate the weight, thinking it's 800 kg when it's actually 1.2 tons. It's advisable to equip a simple weighing device or weigh large items beforehand.

Limit Switches Must Be Checked Regularly

The upper and lower limit switches on an electric hoist are life-saving devices. The upper limit prevents the hook from hitting the hoist body; the lower limit prevents the wire rope from unwinding completely. In many factories, broken limit switches are left unrepaired, and workers rely on visual judgment—over time, lapses occur.

Keep the Rotation Area Clear

The area covered by the jib crane's arm should be kept free of clutter. The operator's line of sight must be unobstructed along the lifting path, not blocked by pillars or racks. Some workshops try to save space by stacking materials at the edge of the rotation range; when the arm swings over, it may scrape against them—very dangerous.

Daily Inspection Points

At the start of each day, test all directional movements without a load, listening for unusual noises. Every month, inspect the wire rope for broken strands, crushing, or kinking. Lubricate the slewing bearing, but don't overdo it; excess oil will splatter everywhere.

People who have used jib cranes for years know that major failures are rare; the real headaches are small issues. For example, if rotation becomes stiff, it could be simply a lack of grease, or it could mean the column is leaning. If the hoist lifts jerkily, it could be voltage instability or worn gears in the gearbox. Operators and maintenance staff need basic diagnostic skills; you can't always wait for the manufacturer to send someone.

Also, no matter how good the equipment, it's useless if not used properly. I've seen many factories install a jib crane, then hang the control pendant on a string somewhere, and workers have to search for it. A better practice is to use a spring retractor so the pendant stays in a fixed position and retracts automatically after use—won't get lost or damaged.

In the end, the combination of an electric hoist and a jib crane is not a high-tech solution, but it solves the most practical material handling problems on the workshop floor. Choose correctly, install properly, and keep up with maintenance—this unassuming piece of equipment can make your production line run much smoother and reduce those heart-stopping lifting accidents.
