Shanghai Maxload Cranes & Hoists Co., Ltd.
Maxloadc&h manual trolley hoistsprovide added mobility and feature a compact, lightweight design for easy installation and use. . This type is a better choice for small workshops and infrequent moves.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

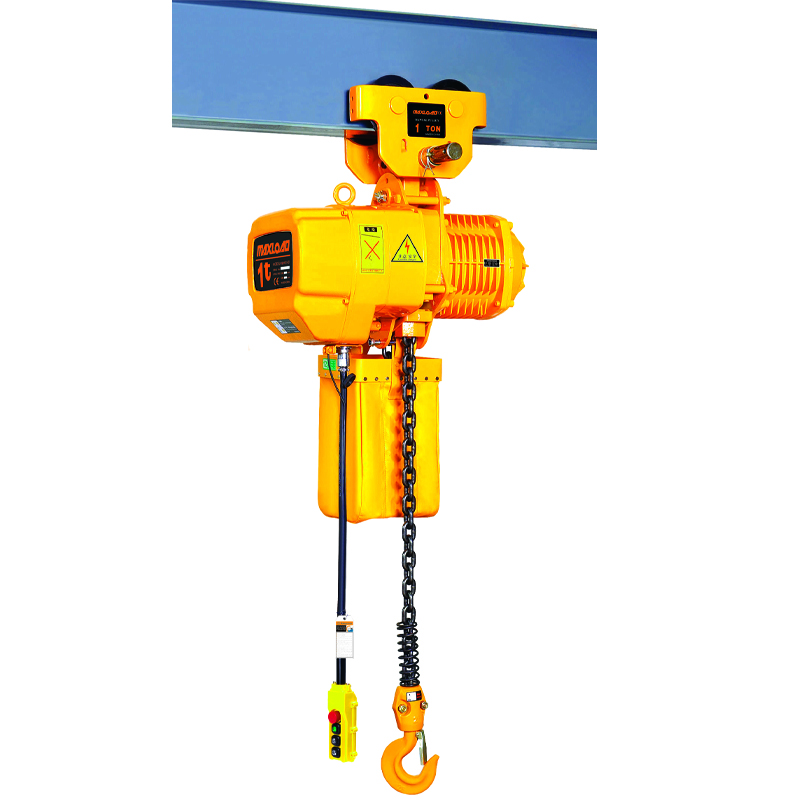

1Ton Single Speed Manual Trolley Electric Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 500kg | HHBB0.5-01SP | 7.2 | 8.6 | 0.75 | 4 | ᴓ6.3*1 | 750 | 48 | |
1000kg | HHBB01-01SP | 6.8 | 8.2 | 1.5 | 4 | ᴓ7.1*1 | 3 phase 220-440V 50-60Hz | 1250kg | 69 |
| HHBB01-02SP | 3.6 | 4.3 | 0.75 | 4 | ᴓ6.3*2 | 59 | |||
2000kg | HHBB02-01SP | 6.6 | 7.9 | 3.0 | 4 | ᴓ10.0*1 | 2500kg | 124 | |
HHBB02-02SP | 3.4 | 4.1 | 1.5 | 4 | ᴓ7.1*2 | 83 | |||
3000kg | HHBB03-01SP | 5.4 | 6.5 | 3.0 | 4 | ᴓ11.2*1 | 3750kg | 138 | |
HHBB03-02SP | 3.4 | 4.1 | 4 | ᴓ10.0*2 | 154 | ||||
HHBB03-03SP | 2.3 | 2.7 | 1.5 | 4 | ᴓ7.1*3 | 115 | |||
5000kg | HHBB05-02SP | 2.7 | 3.2 | 3.0 | 4 | ᴓ11.2*2 | 6250kg | 176 | |

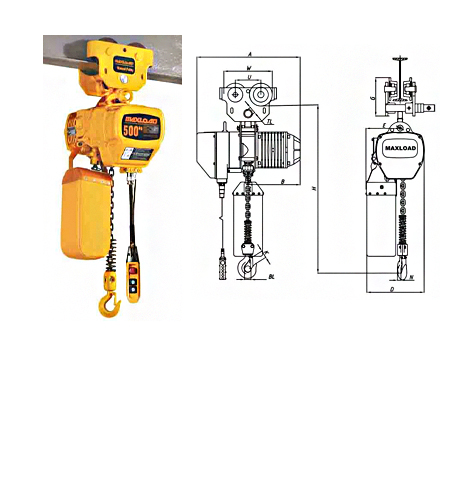

Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | D(mm） | TL/BL (mm） | E(mm） | K(mm） | W(mm） | N(mm） |
| 500kg | HHBB0.5-01SP | 580 | 460 | 230 | 280 | ᴓ35 | 160 | 25 | 163 | 17 |
1000kg | HHBB01-01SP | 635 | 520 | 260 | 300 | ᴓ40 | 176 | 31 | 221 | 22 |
| HHBB01-02SP | 670 | 460 | 230 | 280 | ᴓ40 | 205 | 31 | 221 | 22 | |
2000kg | HHBB02-01SP | 764 | 615 | 295 | 430 | ᴓ47 | 265 | 38 | 265 | 30 |
HHBB02-02SP | 800 | 520 | 260 | 300 | ᴓ47 | 236 | 38 | 265 | 30 | |
3000kg | HHBB03-01SP | 854 | 615 | 295 | 430 | ᴓ58 | 265 | 47 | 305 | 36 |
HHBB03-02SP | 960 | 615 | 295 | 430 | ᴓ58 | 320 | 47 | 305 | 36 | |
| HHBB03-03SP | 968 | 520 | 260 | 350 | ᴓ58 | 205 | 47 | 305 | 36 | |
5000kg | HHBB05-02SS | 1007 | 615 | 295 | 430 | ᴓ60 | 325 | 48 | 332 | 43 |
