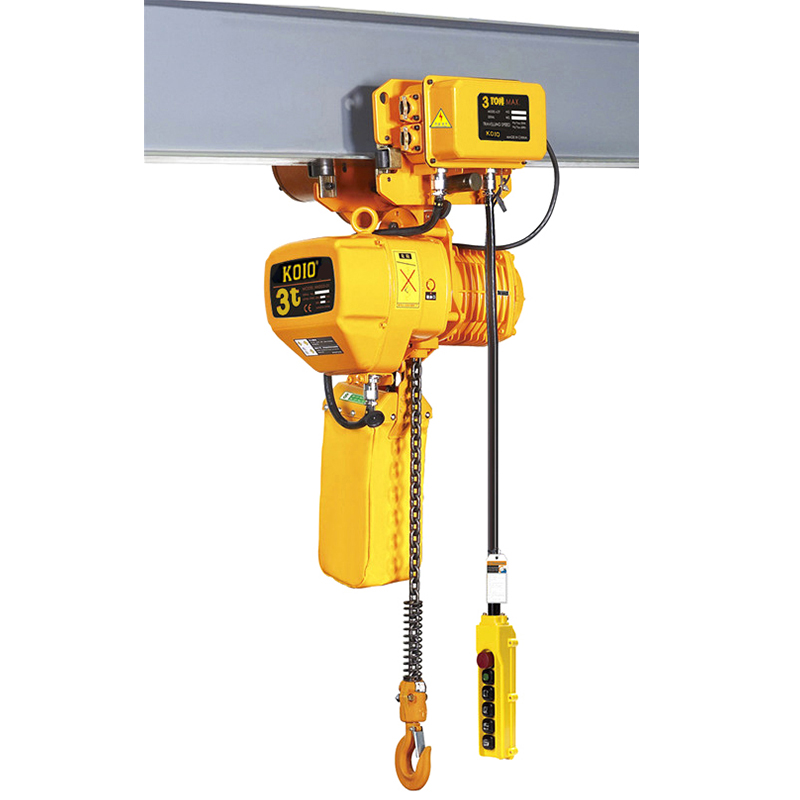

Maxloadc&h HHBB Series motorized trolley electric chain hoist is designed for easy operation and installation, motorized hoists are the answer for lifting and moving material in medium- and heavy-duty industrial applications.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：
2 Ton Single Speed Motorized Trolley Electric Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 500kg | HHBB0.5-01SM | 7.2 | 8.6 | 0.75 | 4 | ᴓ6.3*1 | 750 | 83 | |
1000kg | HHBB01-01SM | 6.8 | 8.2 | 1.5 | 4 | ᴓ7.1*1 | 3 phase 220-440V 50-60Hz | 1250kg | 100 |
| HHBB01-02SM | 3.6 | 4.3 | 0.75 | 4 | ᴓ6.3*2 | 90 | |||
2000kg | HHBB02-01SM | 6.6 | 7.9 | 3.0 | 4 | ᴓ10.0*1 | 2500kg | 158 | |
HHBB02-02SM | 3.4 | 4.1 | 1.5 | 4 | ᴓ7.1*2 | 117 | |||
3000kg | HHBB03-01SM | 5.4 | 6.5 | 3.0 | 4 | ᴓ11.2*1 | 3750kg | 174 | |
HHBB03-02SM | 3.4 | 4.1 | 3.0 | 4 | ᴓ10.0*2 | 190 | |||
HHBB03-03SM | 2.3 | 2.7 | 1.5 | 4 | ᴓ7.1*3 | 151 | |||
5000kg | HHBB05-02SM | 2.7 | 3.2 | 3.0 | 4 | ᴓ11.2*2 | 6250kg | 220 | |
Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | D(mm） | TL/BL (mm） | E(mm） | K(mm） | W(mm） | N(mm） |
| 500kg | HHBB0.5-01SM | 630 | 460 | 230 | 280 | ᴓ35 | 160 | 25 | 162 | 17 |
1000kg | HHBB01-01SM | 650 | 520 | 260 | 300 | ᴓ40 | 176 | 31 | 206 | 22 |
| HHBB01-02SM | 695 | 460 | 230 | 280 | ᴓ40 | 205 | 31 | 206 | 22 | |
2000kg | HHBB02-01SM | 770 | 615 | 295 | 430 | ᴓ47 | 265 | 38 | 237 | 30 |
HHBB02-02SM | 815 | 520 | 260 | 300 | ᴓ47 | 236 | 38 | 237 | 30 | |
3000kg | HHBB03-01SM | 830 | 615 | 295 | 430 | ᴓ58 | 265 | 47 | 265 | 36 |
HHBB03-02SM | 930 | 615 | 295 | 430 | ᴓ58 | 320 | 47 | 265 | 36 | |
| HHBB03-03SM | 940 | 520 | 260 | 350 | ᴓ58 | 205 | 47 | 265 | 36 | |
5000kg | HHBB05-02SM | 1015 | 615 | 295 | 430 | ᴓ60 | 325 | 48 | 296 | 48 |
