Sometimes there’s not enough room to use a standard hoist. Maxloadc&h low-headroom trolley hoist can work where others can’t. This product is ideal for demanding industrial lifting applications where space is extraly tight.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

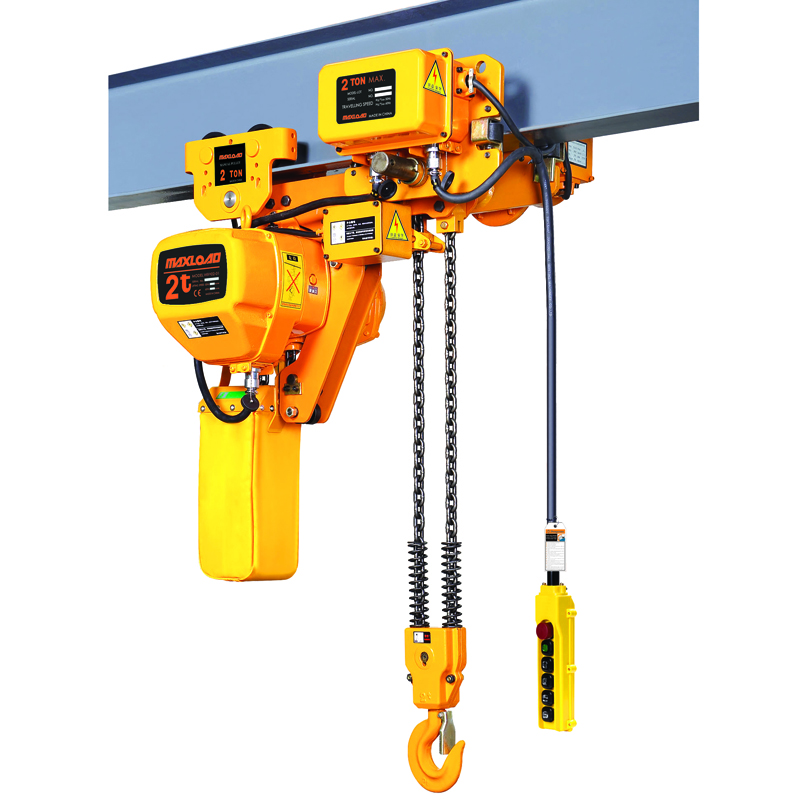

2 Ton Single Speed Low Headroom Electric Chain Hoist With Trolley
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 500kg | HHBB0.5-01SL | 7.2 | 8.6 | 0.75 | 4 | ᴓ6.3*1 | 750 | 111 | |
1000kg | HHBB01-01SL | 6.8 | 8.2 | 1.5 | 4 | ᴓ7.1*1 | 3 phase 220-440V 50-60Hz | 1250kg | 128 |
| HHBB01-02SL | 3.6 | 4.3 | 0.75 | 4 | ᴓ6.3*2 | 118 | |||
2000kg | HHBB02-01SL | 6.6 | 7.9 | 3.0 | 4 | ᴓ10.0*1 | 2500kg | 207 | |
HHBB02-02SL | 3.4 | 4.1 | 1.5 | 4 | ᴓ7.1*2 | 151 | |||
3000kg | HHBB03-01SL | 5.4 | 6.5 | 3.0 | 4 | ᴓ11.2*1 | 3750kg | 231 | |
HHBB03-02SL | 3.4 | 4.1 | 3.0 | 4 | ᴓ10.0*2 | 247 | |||
HHBB03-03SL | 2.2 | 2.6 | 1.5 | 4 | ᴓ7.1*3 | 208 | |||
5000kg | HHBB05-02SL | 2.7 | 3.4 | 3.0 | 4 | ᴓ11.2*2 | 6250kg | 284 | |

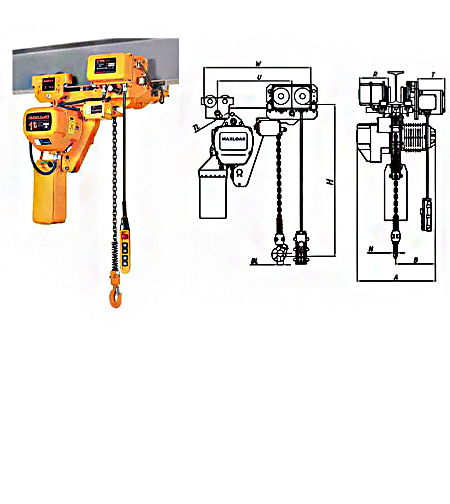

Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | TL(mm） | BL(mm） | R/T(mm） | K(mm） | W(mm） | U(mm） |
| 500kg | HHBB0.5-01SL | 440 | 460 | 230 | 31 | ᴓ35 | 142/231 | 25 | 585 | 400 |
1000kg | HHBB01-01SL | 480 | 520 | 260 | 31 | ᴓ40 | 142/231 | 31 | 630 | 445 |
| HHBB01-02SL | 410 | 460 | 230 | 31 | ᴓ40 | 142/231 | 31 | 595 | 410 | |
2000kg | HHBB02-01SL | 570 | 615 | 295 | 31 | ᴓ47 | 142/231 | 38 | 720 | 505 |
HHBB02-02SL | 535 | 520 | 260 | 31 | ᴓ47 | 142/231 | 38 | 665 | 445 | |
3000kg | HHBB03-01SL | 640 | 615 | 295 | 36 | ᴓ58 | 142/231 | 47 | 775 | 526 |
HHBB03-02SL | 685 | 615 | 295 | 36 | ᴓ58 | 142/231 | 47 | 750 | 503 | |
| HHBB03-03SL | 900 | 520 | 260 | 43 | ᴓ65 | 142/231 | 47 | 1024 | 740 | |
5000kg | HHBB05-02SL | 740 | 615 | 295 | 43 | ᴓ60 | 142/231 | 48 | 825 | 541 |
