Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.




Product Features:

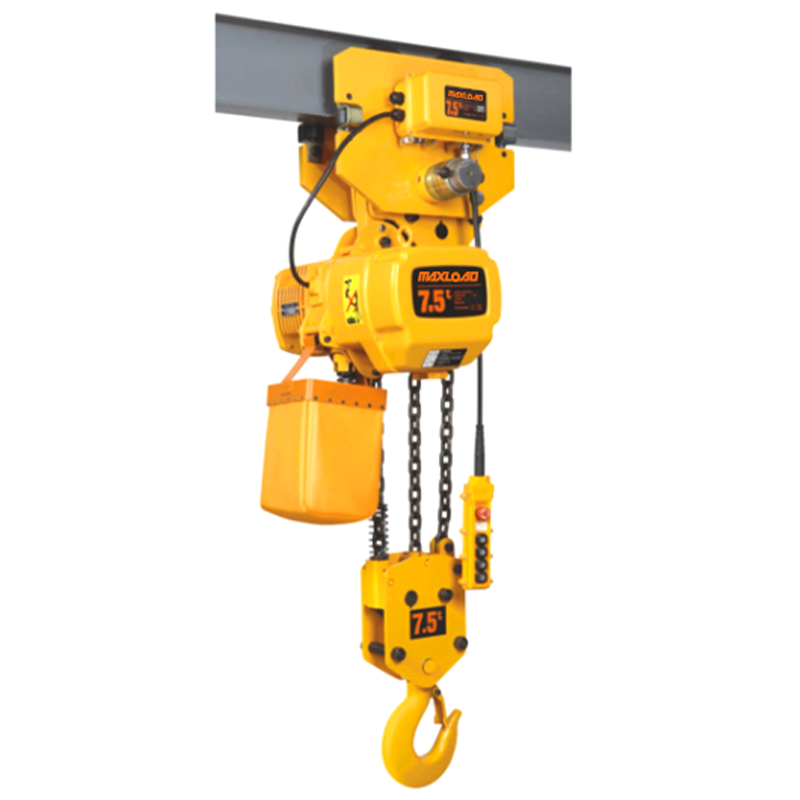

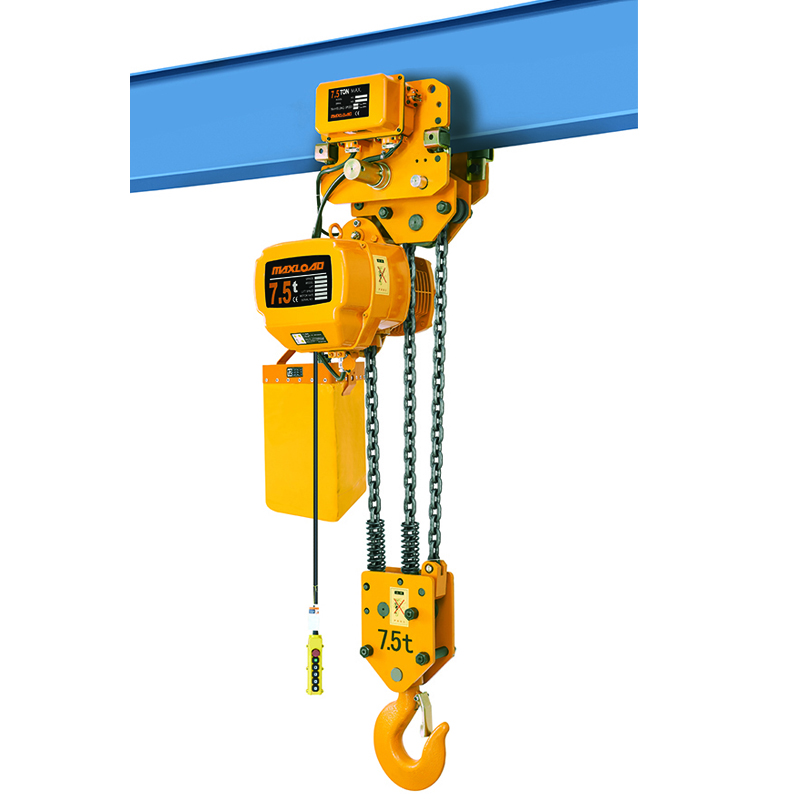

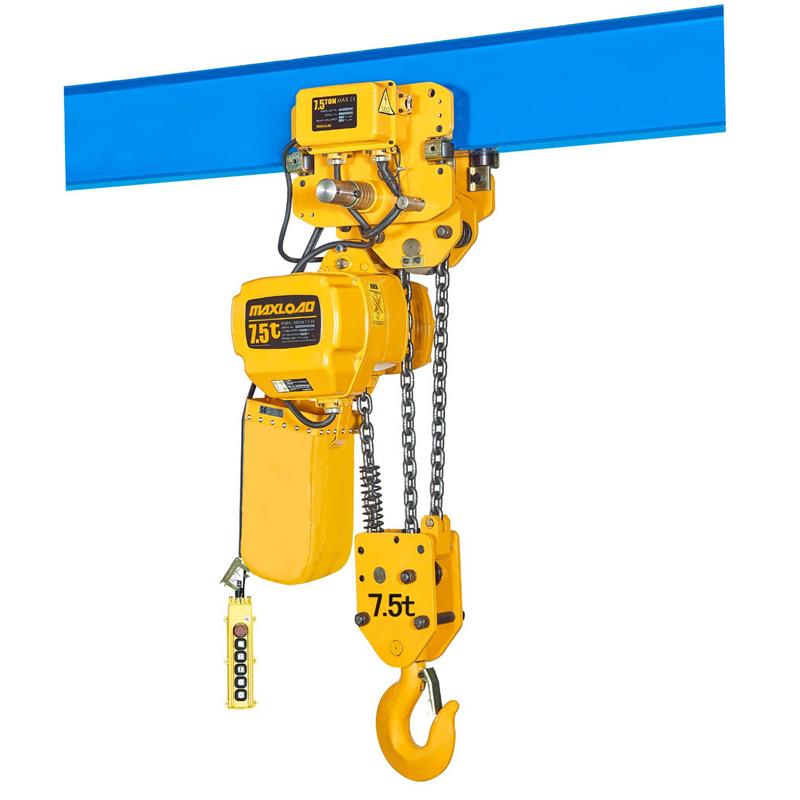

7.5 Ton Single Speed Motorized Trolley Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter:

Capacity

Model NO

Lifting Speed(m/min)

Lifting Out put


Standard

Lift Height

Diameter*fallsVoltageTest LoadNet weight
(kg)50Hz60Hzkw(m)(mm)(V)(kg)(kg)
7500kgHHBB7.5-01SM1.82.23.04ᴓ11.2*3

9375257

10000kg

HHBB10-04SM

2.7

3.2

3.0*2

4

ᴓ11.2*4

3 phase

220-440V

50-60Hz


12500

100

15000kgHHBB15-06SM1.82.23.0*24ᴓ11.2*618750636

20000kg

HHBB20-08SM

1.4

1.7

3.0*2

4

ᴓ11.2*8

25000

736

25000kg

HHBB25-10SM

1.2

1.4

3.0*2

4

ᴓ11.2*10

31250

836

Electric Chain Hoist 2.png

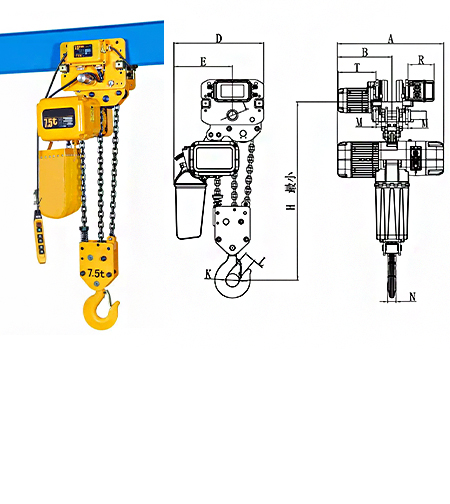

Products Drawing:

Capacity(kg)

Model NO

H(mm)

A(mm)

B(mm)

D(mm)

TL/BL

(mm)

E(mm)

K(mm)

W(mm)

N(mm)

7500kgHHBB7.5-01SM1200615295505ᴓ54/853208029555

10000kg

HHBB10-04SM

1190

630

315


ᴓ70/85

890

80

366

55

15000kgHHBB15-06SM1310630315107054/1205359692685

20000kg

HHBB20-08SM

1470

630

315

1260

70/150

630

115

1106

85

25000kg

HHBB25-10SM

1580

315630

260

1450

70/150

725

115

1280

85
