Shanghai Maxload Cranes & Hoists Co., Ltd.
Maxloadc&h HHBB large capacity electric hoists play high performance while handling heavier loads. Include fan cooled motor for frequency work ，a unique chain guide and pocket wheel that provides quiet and smooth guiding of chain.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

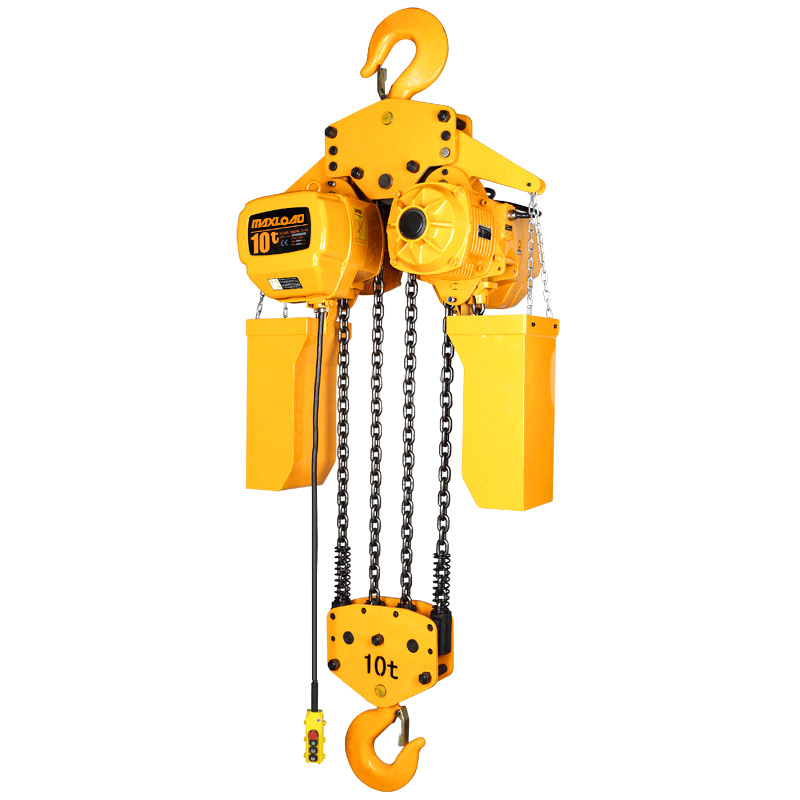

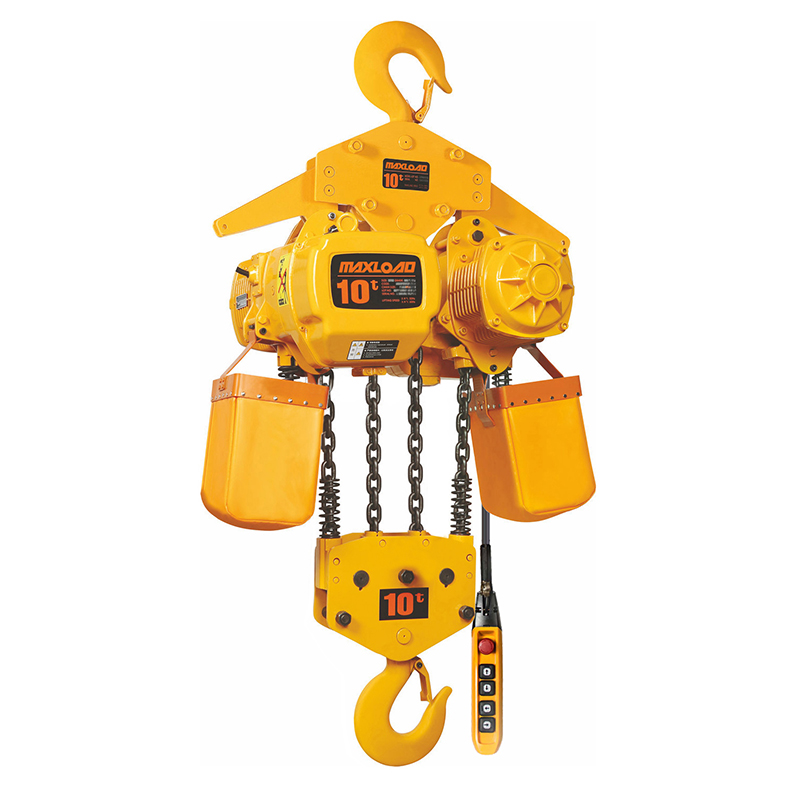

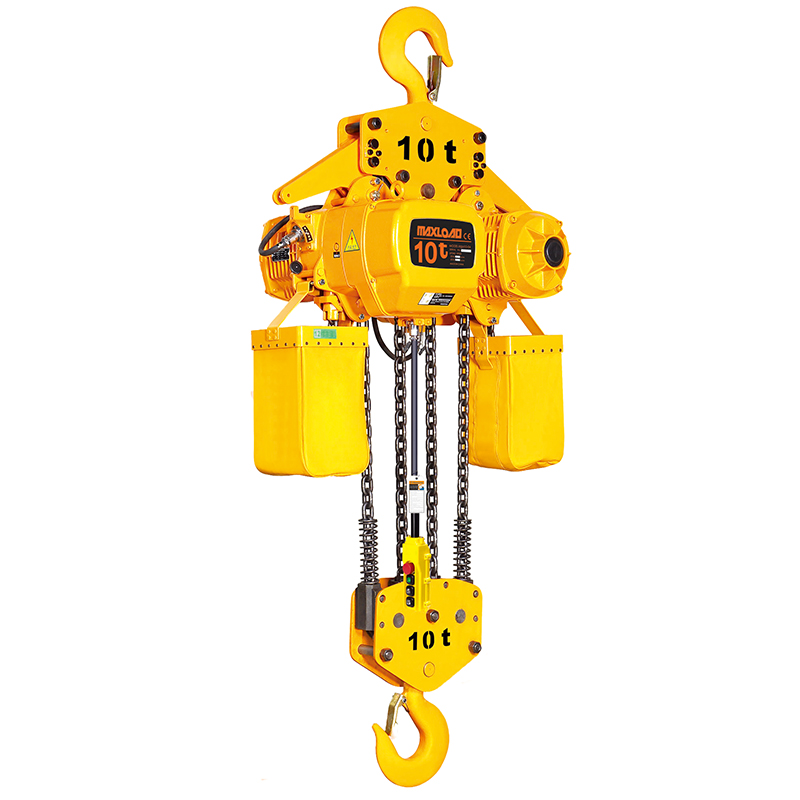

10 Ton Single Speed Hook Fixed Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 10000kg | HHBB10-04SS | 2.7 | 3.2 | 3.0*2 | 4 | ᴓ11.2*4 | 3 phase 220-440V 50-60Hz | 12500 | 295 |
10000kg | HHBB10-04DS | 2.7/0.9 | 3.2/1.1 | 3.0/1.0*2 | 4 | ᴓ11.2*4 | 12500 | 335 | |

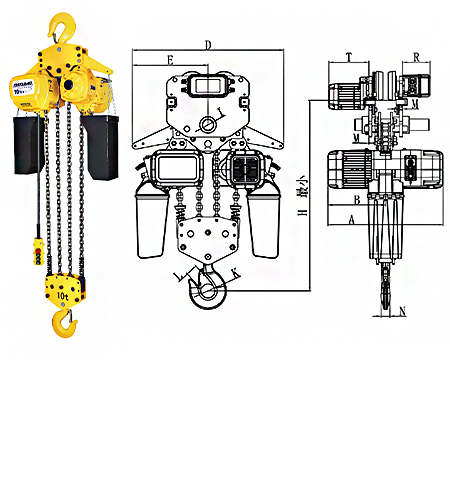

Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | D(mm） | TL/BL (mm） | E(mm） | K(mm） | W(mm） | N(mm） |
10000kg | HHBB10-04SS | 1400 | 630 | 315 | NONE | ᴓ85/85 | 890 | 80 | NONE | 55 |
| 10000kg | HHBB10-04DS | 1400 | 685 | 352 | NONE | ᴓ85/85 | 890 | 80 | NONE | 55 |
