10 Ton Daul Speed Hook Fixed Chain Hoist

Maxloadc&h provides a widely range of lifiting products, covering overhead cranes,electric chain hoists,wire rope electric hoists， JlB cranes, KBK flexible light cranes and other industrial cranes.

SWL#

7.5-25 ton

HOL#

4 meter

MODEL#

HHBB10.0-04SS

Maxloadc&h HHBB large capacity electric hoists play high performance while handling heavier loads. Including fan cooled motor for frequency work ，a unique chain guide and pocket wheel that provide quiet and smooth guiding of chain.Also the hoist is dual speed so you can fine tune speed to meet your needs.

Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.

Product features Product Parameter Product Drawings

Product Features：

10 Ton Daul Speed Hook Fixed Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter：

Capacity	Model NO	Lifting Speed(m/min)		Lifting Out put	Standard Lift Height	*Diameterfalls**	Voltage	Test Load	Net weight
（kg)	Model NO	50Hz	60Hz	kw	(m)	(mm)	(V)	(kg)	(kg)
10000kg	HHBB10-04SS	2.7	3.2	3.0*2	4	ᴓ11.2*4	3 phase 220-440V 50-60Hz	12500	295
10000kg	HHBB10-04DS	2.7/0.9	3.2/1.1	*3.0/1.02**	4	*ᴓ11.24**	3 phase 220-440V 50-60Hz	12500	335

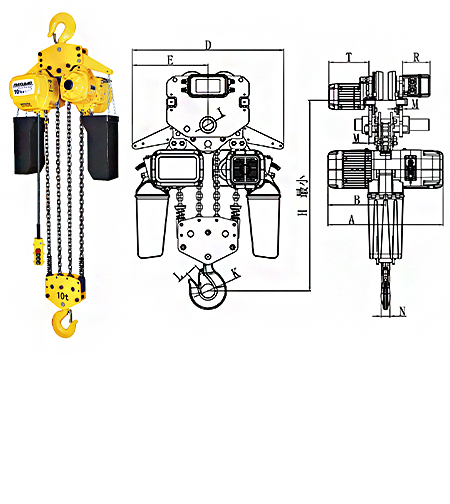

Products Drawing：

Capacity(kg)

Model NO

H(mm）

A(mm）

B(mm）

D(mm）

TL/BL

(mm）

E(mm）

K(mm）

W(mm）

N(mm）

10000kg

HHBB10-04SS

1400

630

315

NONE

ᴓ85/85

890

NONE

10000kg

HHBB10-04DS

1400

685

352

NONE

ᴓ85/85

890

NONE
