10 Ton Daul Speed Motorized Trolley Hoist

Maxloadc&h provides a widely range of lifiting products, covering overhead cranes,electric chain hoists,wire rope electric hoists， JlB cranes, KBK flexible light cranes and other industrial cranes.

SWL#

7.5-25 ton

HOL#

4 meter

MODEL#

HHBB10.0-04DM

Maxload HHBB large capacity motorized daul speed hoist is designed for easy operation and installation.It play high performance while handling heavier loads. The dual speed so you can fine tune speed to meet your needs.This type is the answer for lifting and moving material in medium- and heavy-duty industrial applications.

Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.

Product features Product Parameter Product Drawings

Product Features：

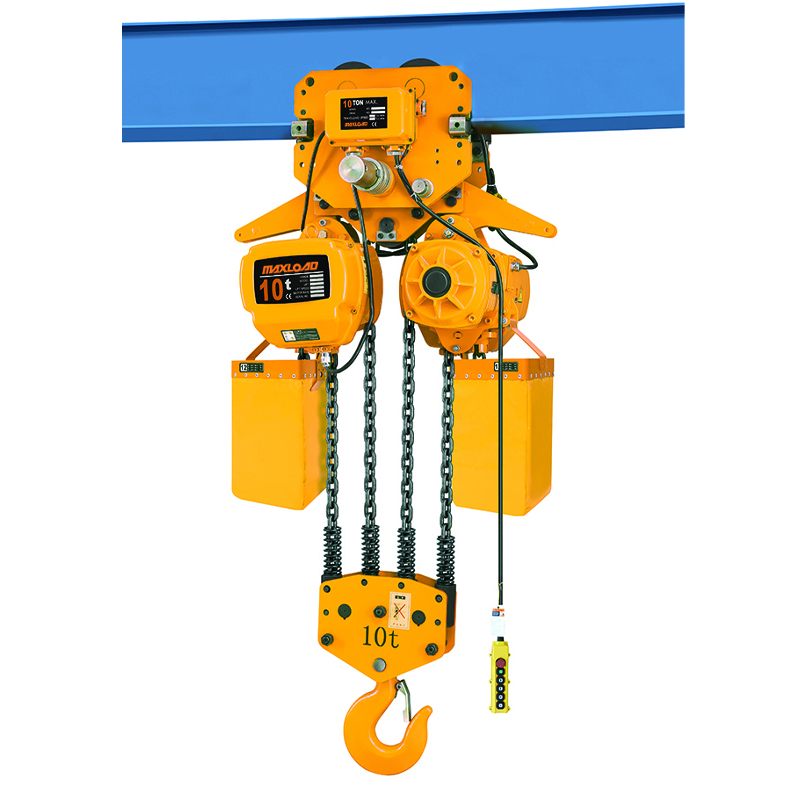

10 Ton Daul Speed Motorized Trolley Electric Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter：

Capacity	Model NO	Lifting Speed(m/min)		Lifting Out put	Standard Lift Height	*Diameterfalls**	Voltage	Test Load	Net weight
（kg)	Model NO	50Hz	60Hz	kw	(m)	(mm)	(V)	(kg)	(kg)
10000kg	HHBB10-04SM	2.7	3.2	3.0*2	4	ᴓ11.2*4	3 phase 220-440V 50-60Hz	12500	423
10000kg	HHBB10-04DM	2.7/0.9	3.2/1.1	*3.0/1.02**	4	*ᴓ11.24**	3 phase 220-440V 50-60Hz	12500	463

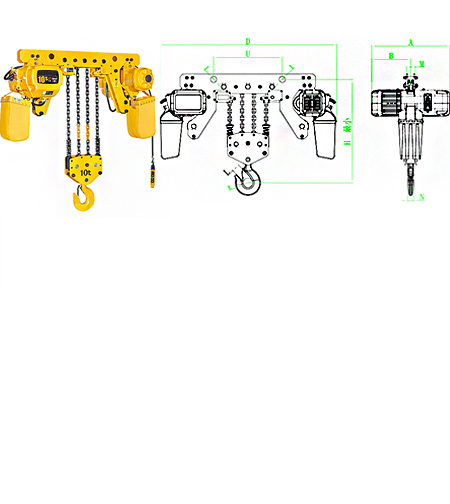

Products Drawing：

Capacity(kg)

Model NO

H(mm）

A(mm）

B(mm）

U(mm）

TL/BL

(mm）

E(mm）

K(mm）

W(mm）

N(mm）

10000kg

HHBB10-04SM

1190

630

315

191

ᴓ85/85

890

366

10000kg

HHBB10-04DM

1190

685

352

191

ᴓ85/85

890

366
