Maxload HHBB three-phase, heavy duty, large capacity，electric chain hoists have all the power you need to move those heavy loads.With motorized trolley is the perfect solution for moving material in medium- and heavy-duty industrial applications.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

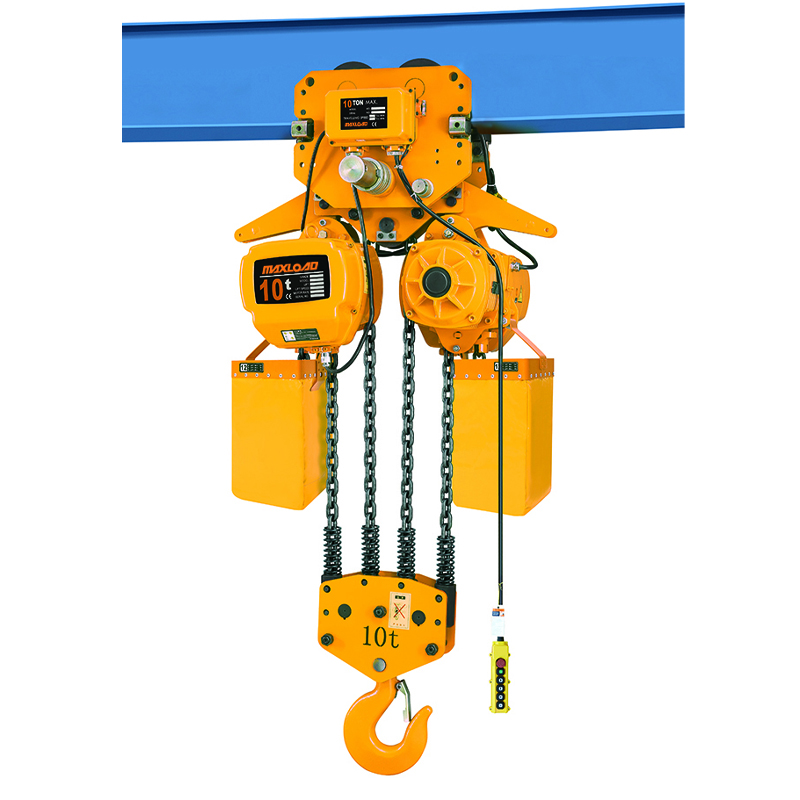

10 Ton Single Speed Motorized Trolley Electric Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 10000kg | HHBB10-04SM | 2.7 | 3.2 | 3.0*2 | 4 | ᴓ11.2*4 | 3 phase 220-440V 50-60Hz | 12500 | 423 |
10000kg | HHBB10-04DM | 2.7/0.9 | 3.2/1.1 | 3.0/1.0*2 | 4 | ᴓ11.2*4 | 12500 | 463 | |

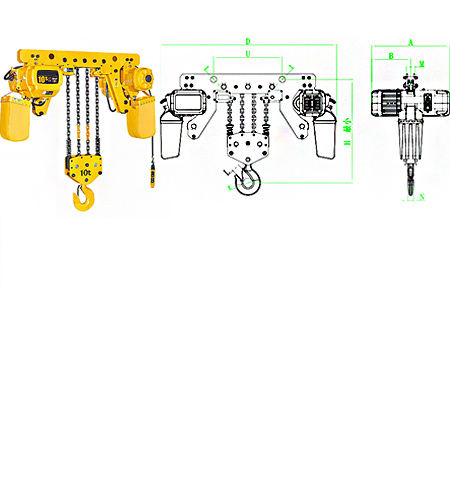

Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | U(mm） | TL/BL (mm） | E(mm） | K(mm） | W(mm） | N(mm） |
10000kg | HHBB10-04SM | 1190 | 630 | 315 | 191 | ᴓ85/85 | 890 | 80 | 366 | 55 |
| 10000kg | HHBB10-04DM | 1190 | 685 | 352 | 191 | ᴓ85/85 | 890 | 80 | 366 | 55 |
