Shanghai Maxload Cranes & Hoists Co., Ltd.
Maxload HHBB three-phase, heavy duty, large capacity，electric chain hoists have all the power you need to move those heavy loads.With motorized trolley is the perfect solution for moving material in medium- and heavy-duty industrial applications.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

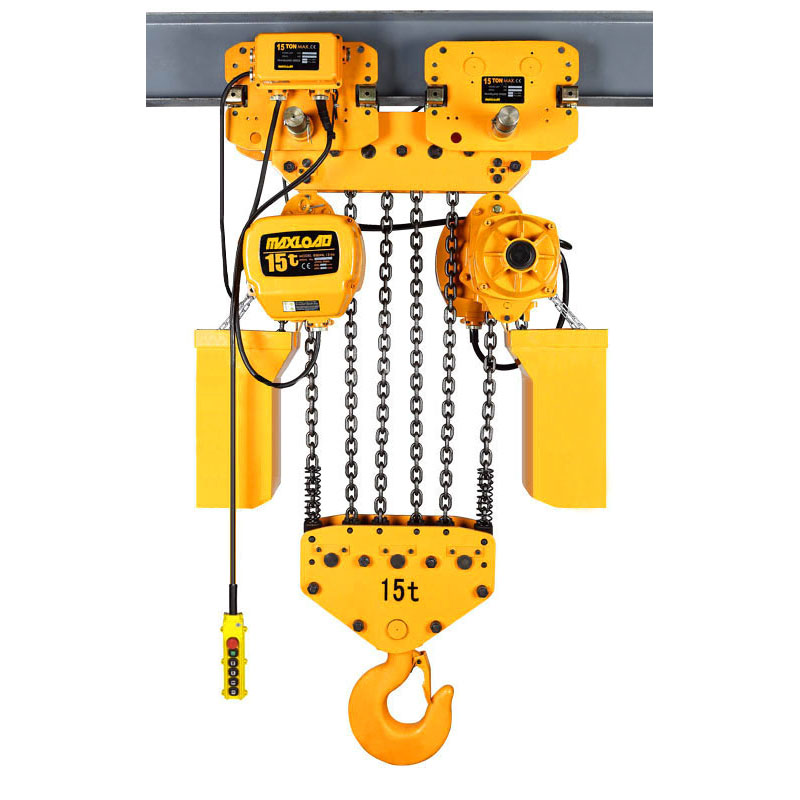

15 Ton Single Speed Motorized Trolley Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
| 7500kg | HHBB7.5-01SM | 1.8 | 2.2 | 3.0 | 4 | ᴓ11.2*3 | 9375 | 257 | |
10000kg | HHBB10-04SM | 2.7 | 3.2 | 3.0*2 | 4 | ᴓ11.2*4 | 3 phase 220-440V 50-60Hz | 12500 | 100 |
| 15000kg | HHBB15-06SM | 1.8 | 2.2 | 3.0*2 | 4 | ᴓ11.2*6 | 18750 | 636 | |
20000kg | HHBB20-08SM | 1.4 | 1.7 | 3.0*2 | 4 | ᴓ11.2*8 | 25000 | 736 | |
| 25000kg | HHBB25-10SM | 1.2 | 1.4 | 3.0*2 | 4 | ᴓ11.2*10 | 31250 | 836 | |

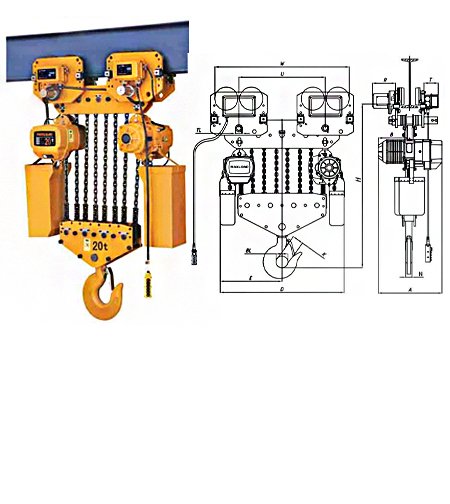

Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | D(mm） | TL/BL (mm） | E(mm） | K(mm） | W(mm） | N(mm） |
| 7500kg | HHBB7.5-01SM | 1200 | 615 | 295 | 505 | ᴓ54/85 | 320 | 80 | 295 | 55 |
10000kg | HHBB10-04SM | 1190 | 630 | 315 | ᴓ70/85 | 890 | 80 | 366 | 55 | |
| 15000kg | HHBB15-06SM | 1310 | 630 | 315 | 1070 | 54/120 | 535 | 96 | 926 | 85 |
20000kg | HHBB20-08SM | 1470 | 630 | 315 | 1260 | 70/150 | 630 | 115 | 1106 | 85 |
| 25000kg | HHBB25-10SM | 1580 | 315630 | 260 | 1450 | 70/150 | 725 | 115 | 1280 | 85 |
