Shanghai Maxload Cranes & Hoists Co., Ltd.

Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.




Product Features:

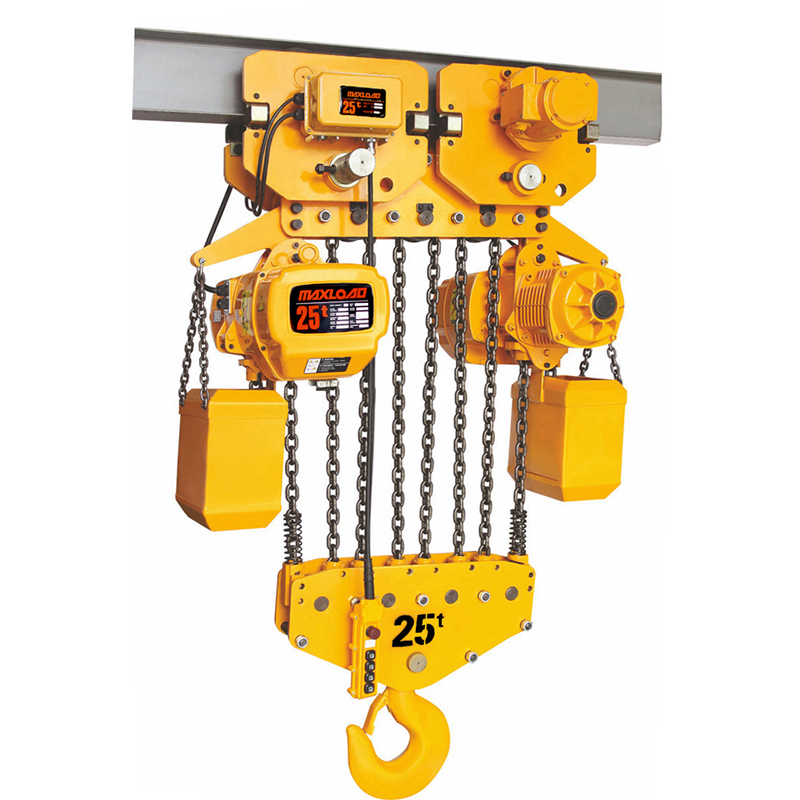

25 Ton Daul Speed Motorized Trolley Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter:

Capacity

Model NO

Lifting Speed(m/min)

Lifting Out put


Standard

Lift Height

Diameter*fallsVoltageTest LoadNet weight
(kg)50Hz60Hzkw(m)(mm)(V)(kg)(kg)
7500kgHHBB7.5-01DM1.8/0.62.2/0.73.0/1.04ᴓ11.2*3

9375277

10000kg

HHBB10-04DM

2.7/0.9

3.2/1.1

3.0/1.0*2

4

ᴓ11.2*4

3 phase

220-440V

50-60Hz


12500

463

15000kgHHBB15-06DM1.8/0.62.2/0.73.0/1.0*24ᴓ11.2*618750676

20000kg

HHBB20-08DM

1.4/0.5

1.7/0.6

3.0/1.0*2

4

ᴓ11.2*8

25000

776

25000kg

HHBB25-10DM

1.2/0.4

1.4/0.5

3.0/1.0*2

4

ᴓ11.2*10

31250

876

Electric Chain Hoist 2.png

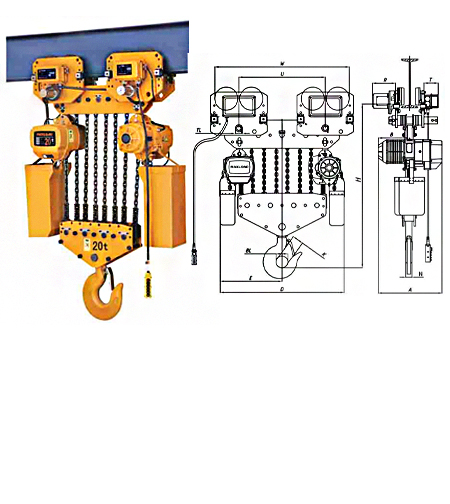

Products Drawing:

Capacity(kg)

Model NO

H(mm)

A(mm)

B(mm)

D(mm)

TL/BL

(mm)

E(mm)

K(mm)

W(mm)

N(mm)

7500kgHHBB7.5-01DM1200615295505ᴓ54/853208029555

10000kg

HHBB10-04DM

1190

685

352


ᴓ70/85

890

80

366

55

15000kgHHBB15-06DM1310685352107054/1205359692685

20000kg

HHBB20-08DM

1470

685

352

1260

70/150

630

115

1106

85

25000kg

HHBB25-10DM

1580

685

352

1450

70/150

725

115

1280

95
