Shanghai Maxload Cranes & Hoists Co., Ltd.
Maxloadc&h HHER series Electric Chain Hoist are designed with strength and stablility.The body is not only tough but also lightweight.The aluminum shell and exhaust fan effectively cool the hoist during frequent use.The strong braking force of electromagnetic brake can ensure the safe load.The sensor will cut of the power when overheating.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:4 meter.
Product Features：

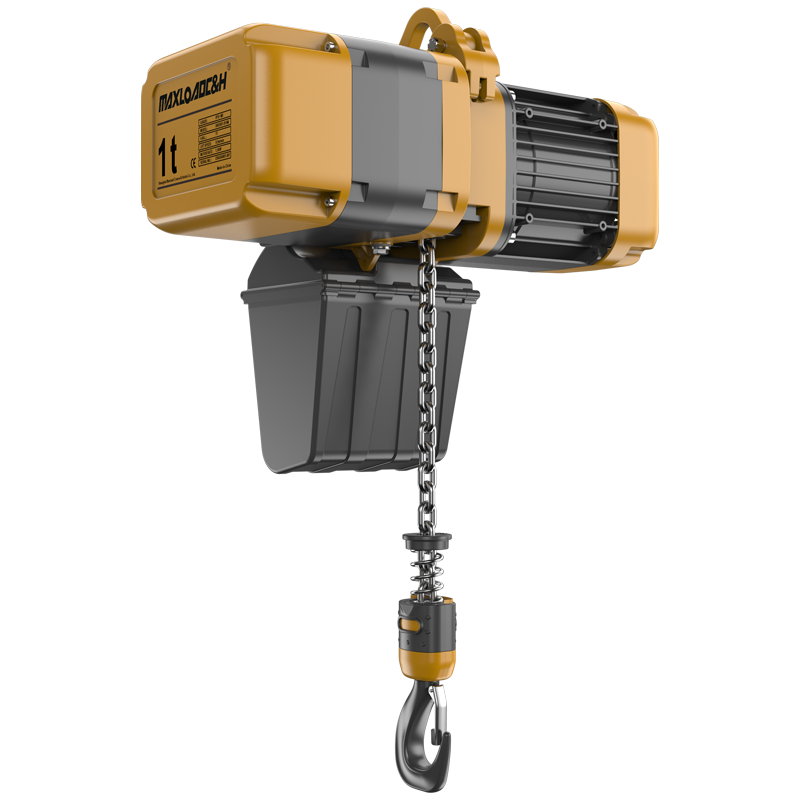

1 Ton Single Speed Hook Suspension Electric Chain Hoist Hook Suspension Type
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
Capacity | Model NO | Lifting Speed(m/min) | Lifting Out put | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
1000kg | HHER01-01SS | 6.8 | 8.2 | 1.5 | 4 | ᴓ8.0*1 | 3 phase 220-440V 50-60Hz | 1250kg | 55 |
2000kg | HHER02-01SS | 5.4 | 6.5 | 3.0 | 4 | ᴓ10.0*1 | 2500kg | 71 | |
HHER02-02SS | 3.6 | 4.3 | 1.5 | 4 | ᴓ8.0*1 | 75 | |||
3000kg | HHER03-01SS | 5.4 | 6.5 | 3.0 | 4 | ᴓ11.2*1 | 3750kg | 135 | |
HHER03-02SS | 2.8 | 3.4 | 4 | ᴓ10.0*2 | 144 | ||||
HHER03-03SS | 1.8 | 2.2 | 1.5 | 4 | ᴓ8.0*3 | 98 | |||
5000kg | HHER05-02SS | 2.7 | 3.2 | 3.0 | 4 | ᴓ11.2*2 | 6250kg | 162 | |
Products Drawing：
Capacity(kg) | Model NO | H(mm） | A(mm） | B(mm） | D(mm） | J(mm） | K(mm） | L(mm） | N(mm） | I(mm） |
1000kg | HHER01-01SS | 460 | 595 | 320 | 300 | ᴓ31 | ᴓ40 | 31 | 24 | 40 |
2000kg | HHER02-01SS | 560 | 645 | 320 | 320 | ᴓ36 | ᴓ49 | 35 | 30 | 47 |
HHER02-02SS | 660 | 595 | 320 | 300 | ᴓ36 | ᴓ49 | 35 | 30 | 47 | |
3000kg | HHER03-01SS | 710 | 785 | 395 | 465 | ᴓ43 | ᴓ59 | 42 | 35 | 58 |
HHER03-02SS | 680 | 645 | 330 | 320 | ᴓ43 | ᴓ59 | 42 | 35 | 58 | |
5000kg | HHER05-02SS | 940 | 785 | 395 | 465 | ᴓ54 | ᴓ60 | 45 | 43 | 60 |
