Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.




Product Features:

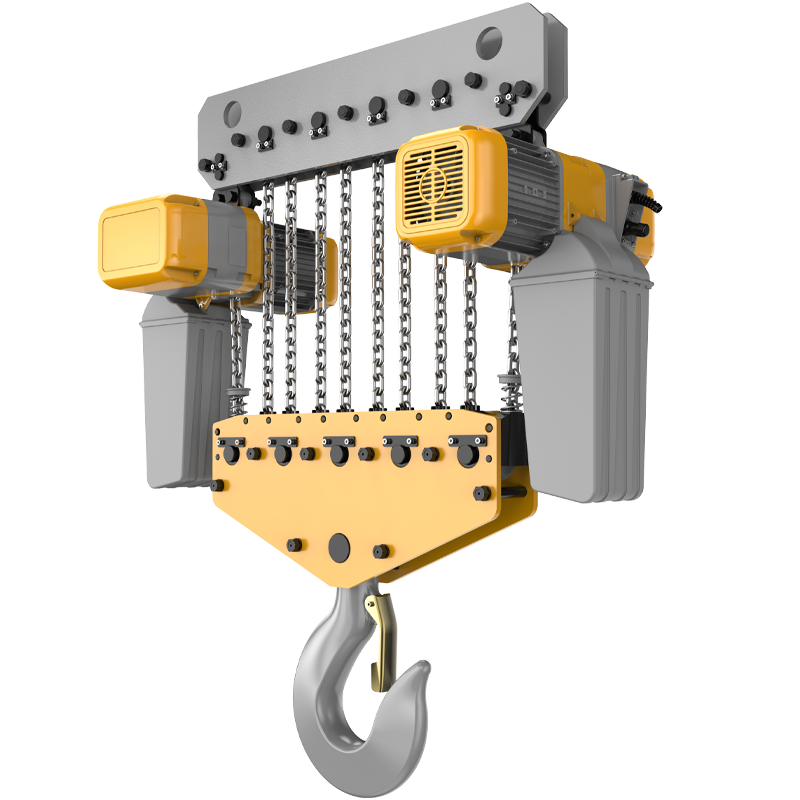

25 Ton Single Speed Motorized Trolley Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.

HHER Strcture 定稿.jpg

Products Parameter:

Capacity

Model NO

Lifting Speedm/min

Lifting Out put


Standard

Lift Height

Diameter*fallsVoltageTest LoadNet weight
(kg)m/minkw(m)(mm)(V)(kg)(kg)
7500kgHHER7.5-03SM1.8/0.63.0/1.14ᴓ11.2*3

9375277

10000kg

HHER10-04SM

2.7/0.8

3.0/1.0*2

4

ᴓ11.2*4

3 phase

220-440V

50-60Hz


12500

463

15000kgHHER15-06SM1.8/0.53.0/1.0*24ᴓ11.2*618750676

20000kg

HHER20-08SM

1.35/0.4

3.0/1.0*2

4

ᴓ11.2*8

25000

776

25000kg

HHER25-10SM

1.2/0.3

3.0/1.0*2

4

ᴓ11.2*10

31250

876

Electric Chain Hoist 2.png

Products Drawing:

Capacity(kg)

Model NO

H(mm)

A(mm)

B(mm)

D(mm)

TL/BL

(mm)

E(mm)

K(mm)

W(mm)

N(mm)

7500kgHHER7.5-03SM120061529550554/853208029555

10000kg

HHER10-04SM

1190

685

352


70/85

890

80

366

55

15000kgHHER15-06SM1310685315107054/1205359692685

20000kg

HHER20-08SM

1470

685

315

1260

70/150

630

115

1106

85

25000kg

HHER25-10SM

1580

685

260

1450

70/150

725

115

1280

95

HHER15-25 电动小车.jpg
