Shanghai Maxload Cranes & Hoists Co., Ltd.

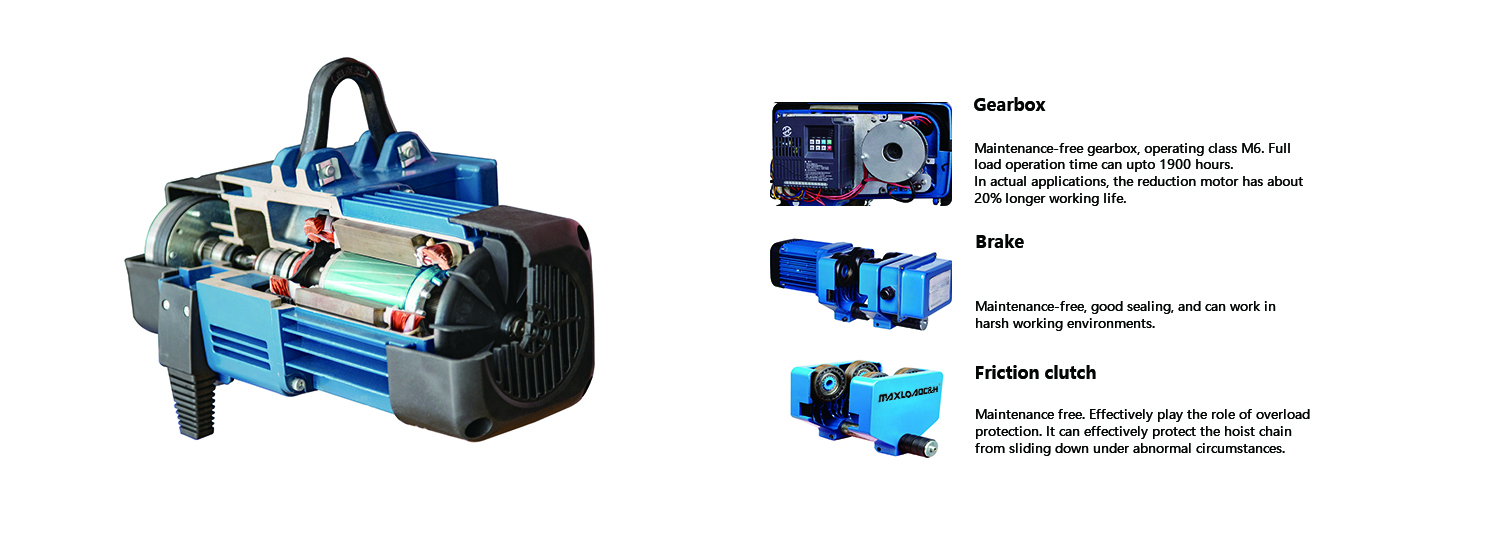

Maxiload DMG sereis Euro standard electric chain hoist has thickened shell with industrial forging，auto-grade paint，more durable；the seiko chain has strong tensile resistance；Pure copper motor make stable operation without burning machine，fast heat dissipation，high efficiency；lightweight and durable moisture-proof and dust-proof，to meet the needs of different environment.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:3m.
Load weight range：125kg-2000kg

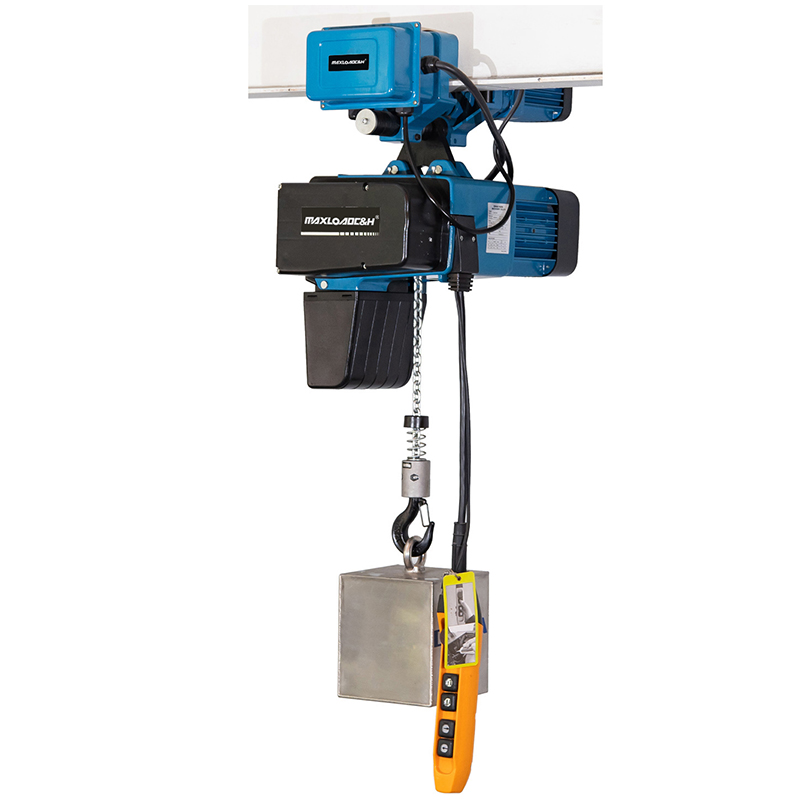

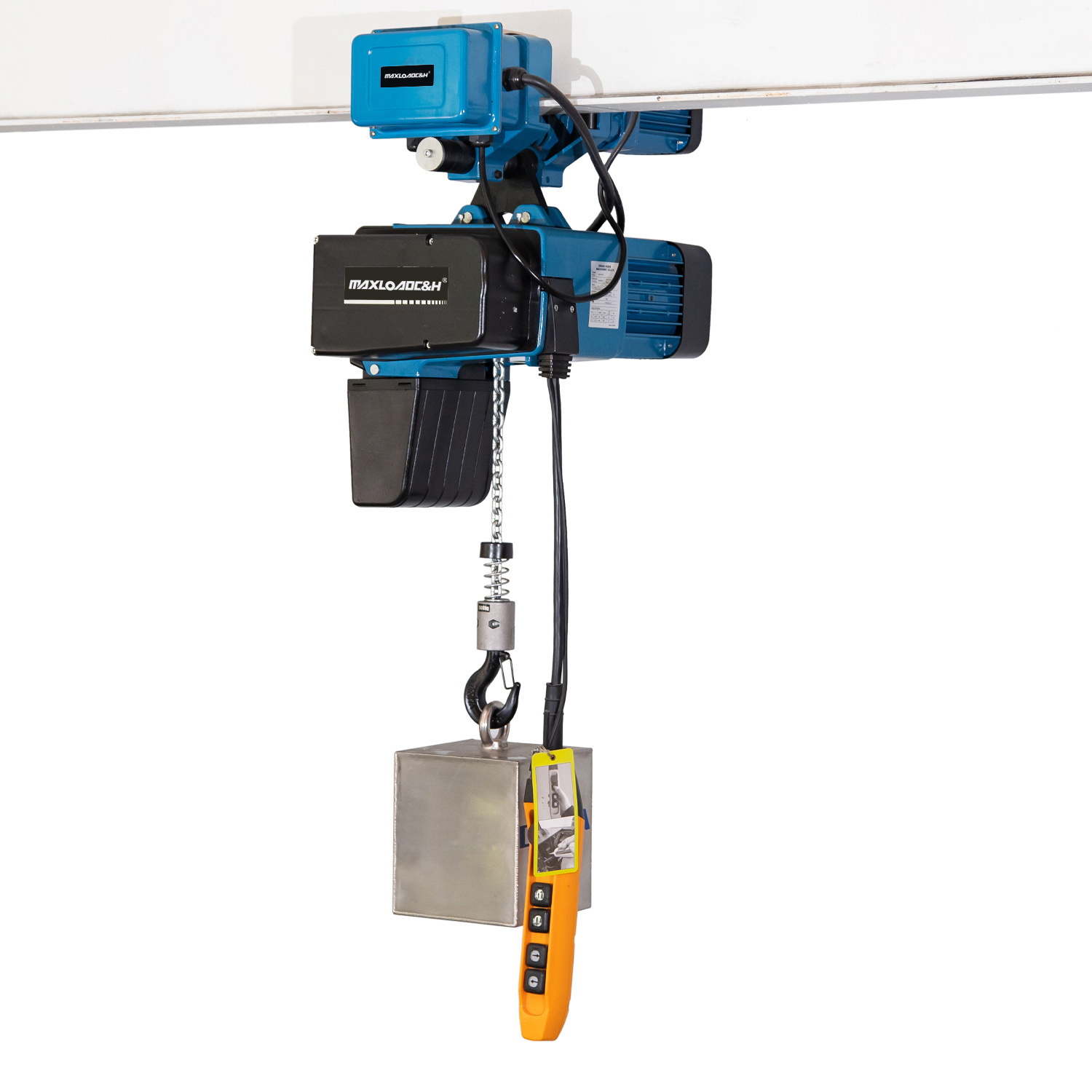

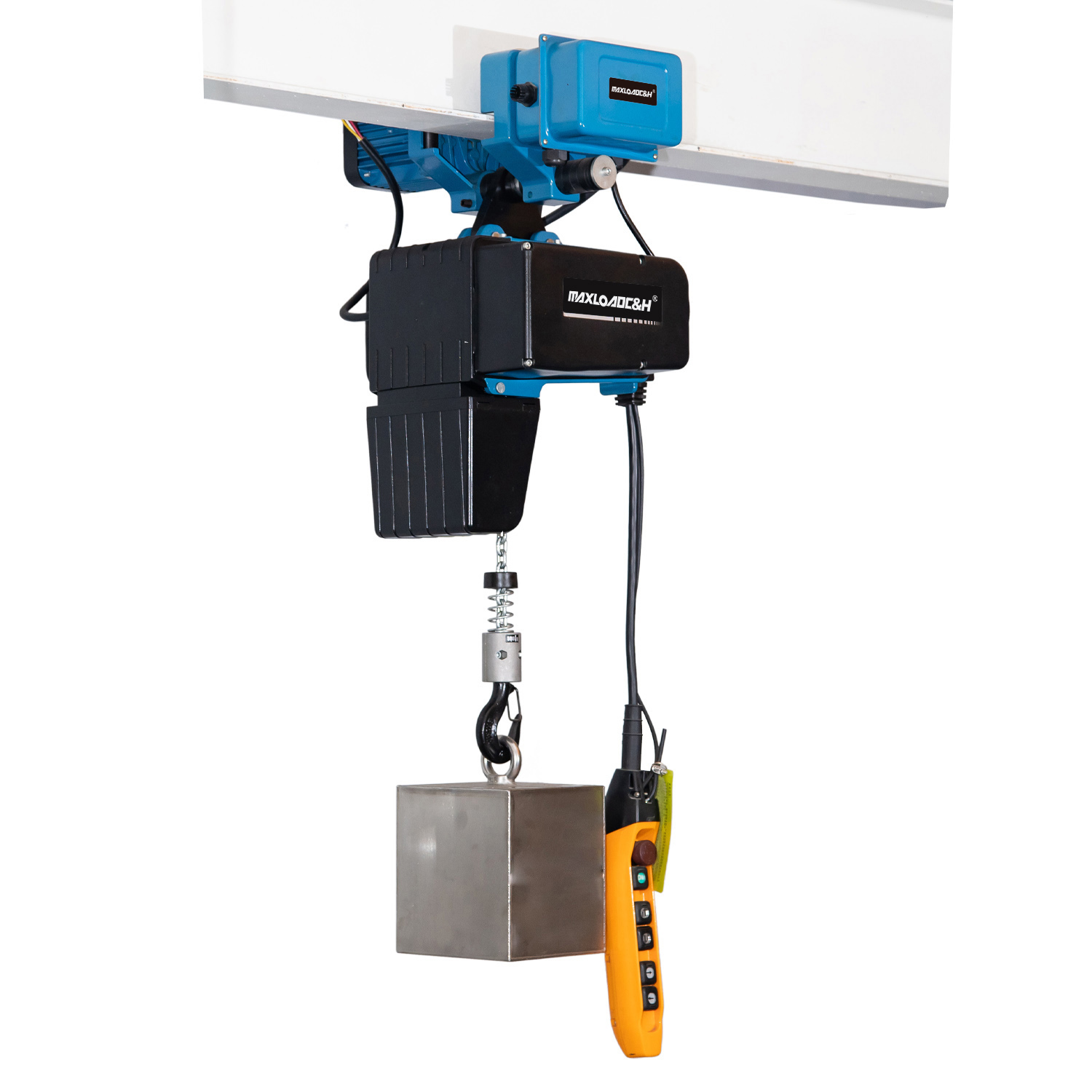

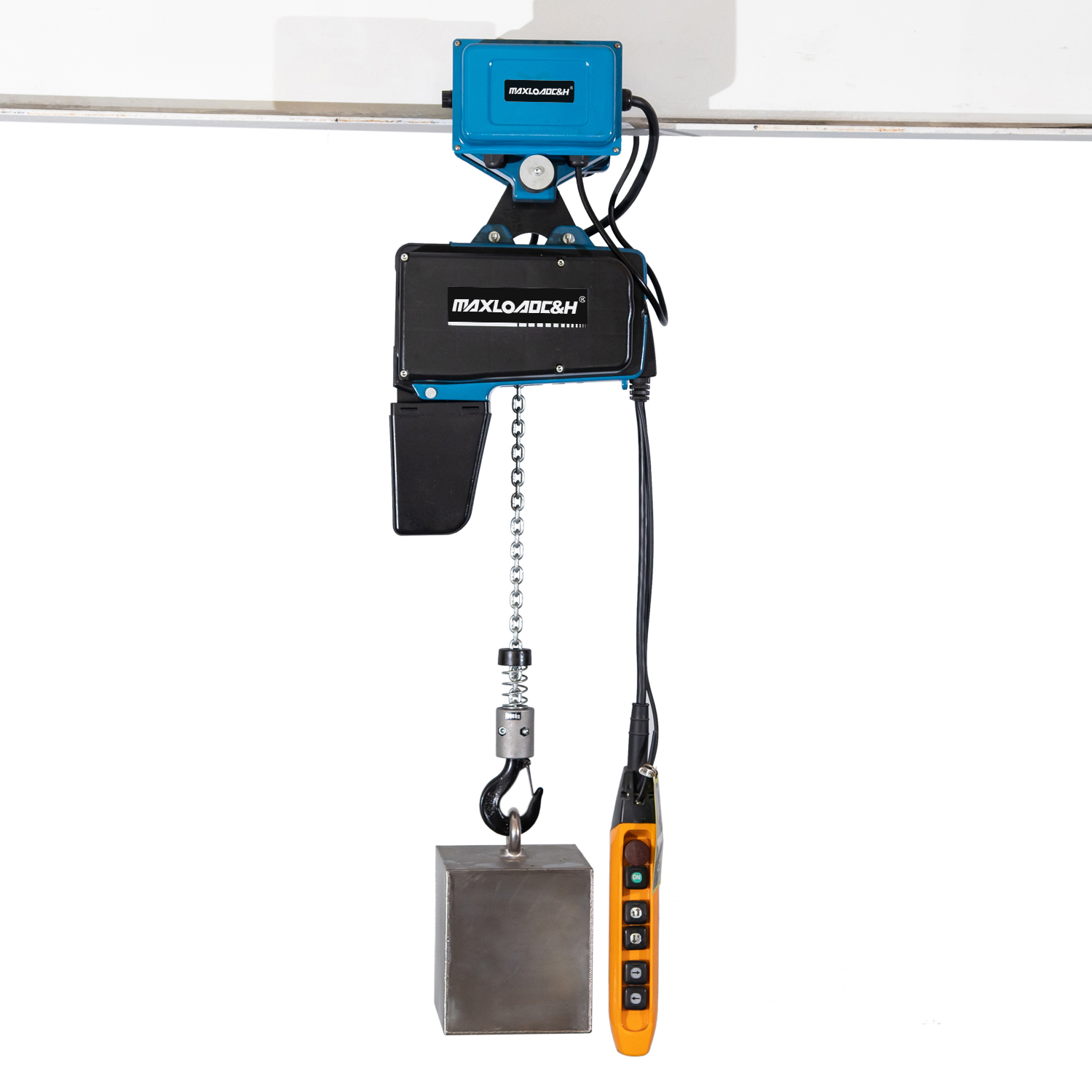

2 Ton Daul Speed European Electric Chain Hoist Motorized Trolley Type
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Electric Chain Hoist Euro Standard With Hook Suspension Daul Speed Type
| Capacity | Model NO | Lift Speed(m/min) | Lift Output | Standard Lift Height | Diameter*falls | Voltage | Test Load | Net weight | |
| （kg) | 50Hz | 60Hz | kw | (m) | (mm) | (V) | (kg) | (kg) | |
125kg | DMG0.125-01DM | 8/2 | 9.6/2.6 | 0.4/0.1 | 3 | ᴓ5.0*1 | 3 phase 220-440V 50-60Hz | 156kg | 29.5 |
250kg | DMG0.25-01DM | 8/2 | 9.6/2.6 | 0.4/0.1 | 3 | ᴓ5.0*1 | 312kg | 29.5 | |
500kg | DMG0.5-01DM | 8/2 | 9.6/2.6 | 0.75/0.2 | 3 | ᴓ5.0*1 | 625kg | 35.5 | |
DMG0.5-02DM | 4/1 | 4.8/1.2 | 0.4/0.1 | 3 | ᴓ5.0*2 | 35.5 | |||
1000kg | DMG01-01DM | 8/2 | 9.6/2.6 | 1.5/0.37 | 3 | ᴓ7.1*1 | 1250kg | 38 | |
| DMG01-02DM | 4/1 | 4.8/1.2 | 0.75/0.2 | 3 | ᴓ5.0*2 | 57 | |||
| 2000kg | DMG02-02DM | 4/1 | 4.8/1.2 | 1.5/0.37 | 3 | ᴓ7.1*2 | 2500kg | 64 | |

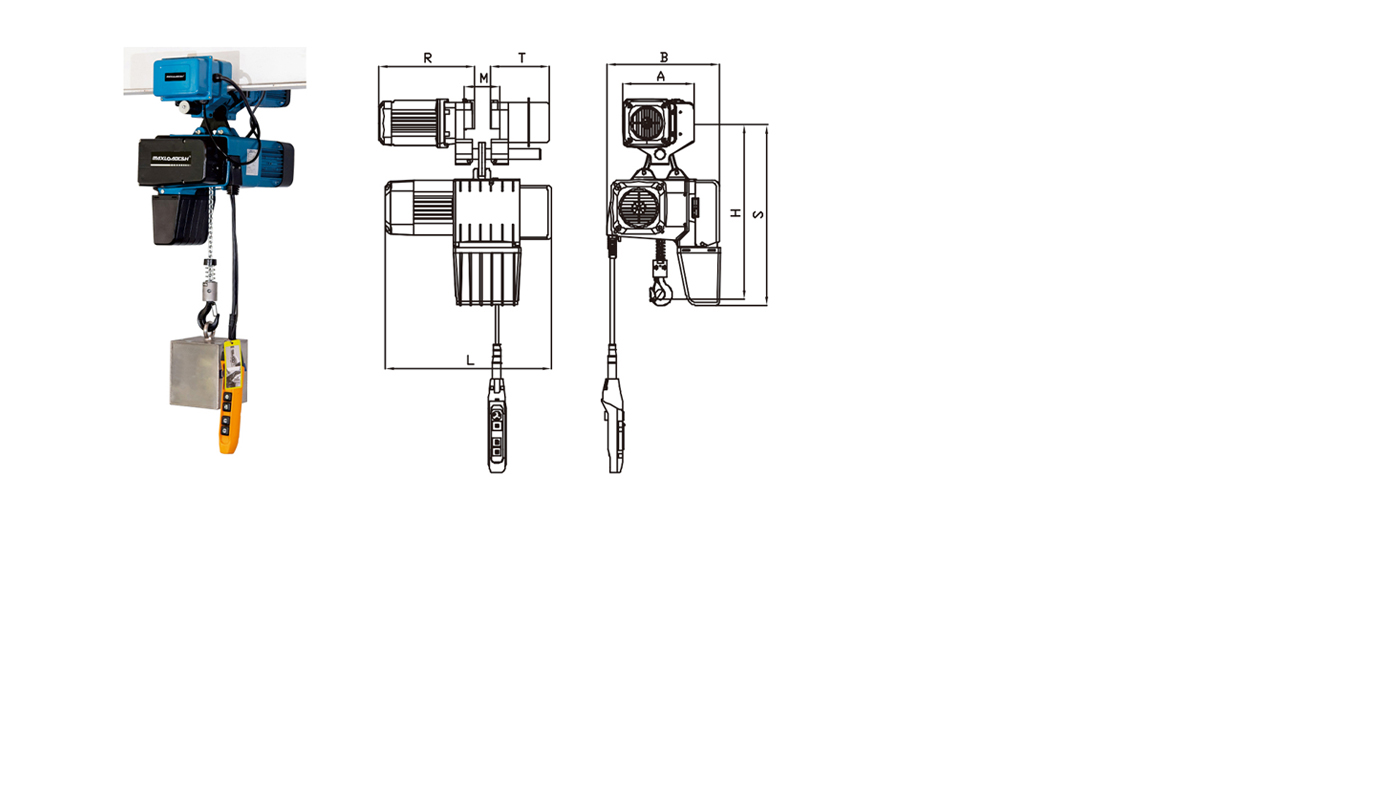

Capacity (kg) | Model NO | H (mm） | A (mm） | B (mm） | S (mm） | L (mm） | R (mm） | T (mm） |
125kg | DMG0.125-01DM | 470 | 201 | 288 | 470 | 440 | 260 | 164 |
250kg | DMG0.25-01DM | 470 | 201 | 288 | 470 | 440 | 260 | 164 |
500kg | DMG0.5-01DM | 490 | 201 | 315 | 495 | 464 | 260 | 164 |
DMG0.5-0.2DM | 540 | 201 | 315 | 470 | 440 | 260 | 164 | |
1000kg | DMG01-01DM | 600 | 340 | 343 | 580 | 548 | 305 | 190 |
| DMG01-02DM | 560 | 315 | 315 | 495 | 464 | 260 | 164 | |
| 2000kg | DMG02-02DM | 670 | 340 | 343 | 690 | 548 | 290 | 200 |
