Shanghai Maxload Cranes & Hoists Co., Ltd.

Standard technique data:

Voltage:220V--440V,3phase;

Lift height:4 meter.




Product Features:

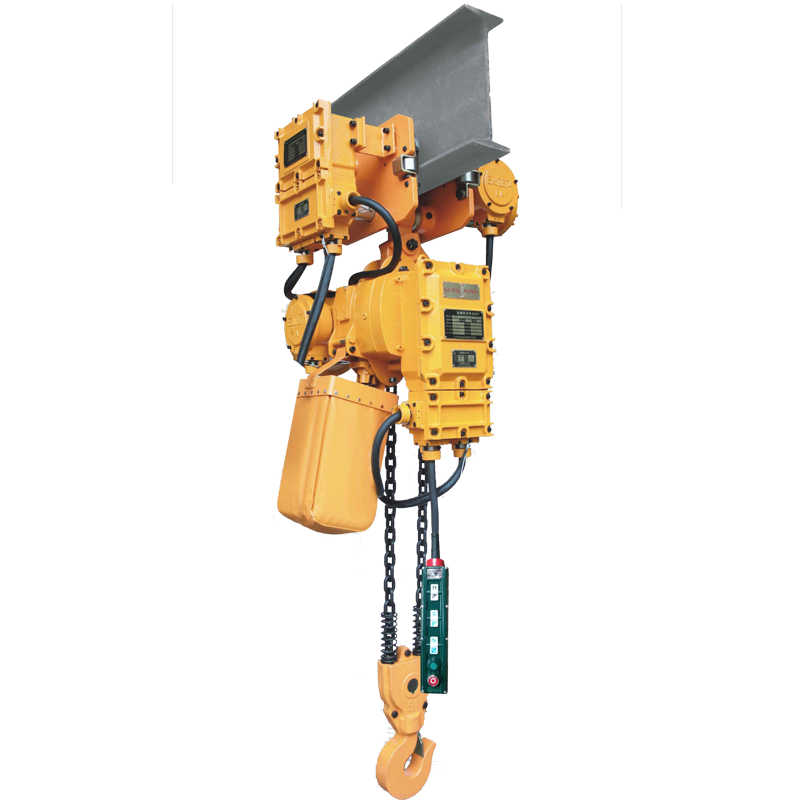

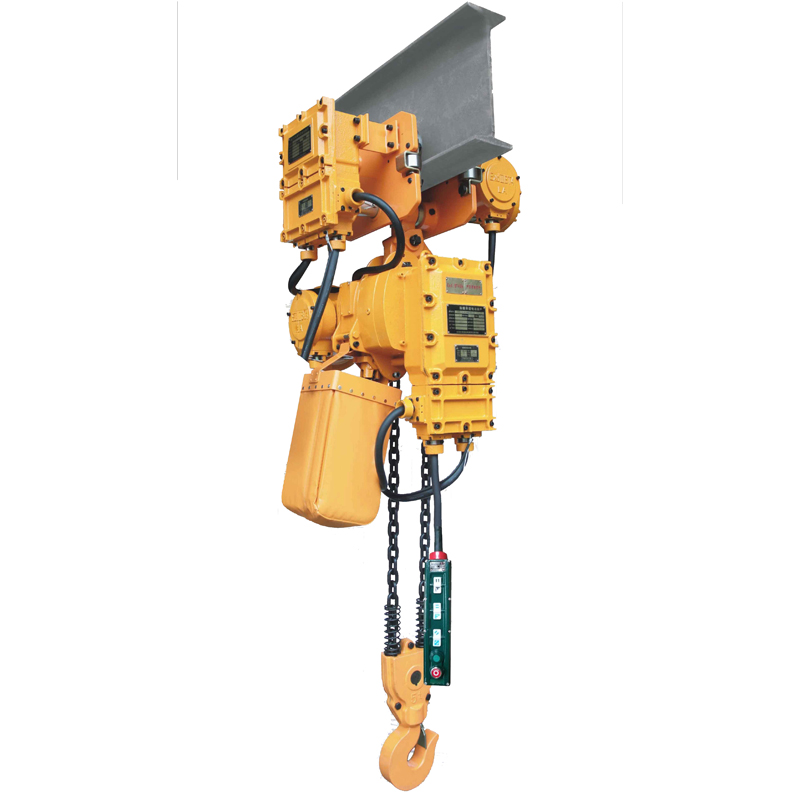

1 Ton Double Speed Explosion-proof Motorized Trolley Electric Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter:

Capacity

Model NO

Lifting Speed

Lifting Out put


Standard

Lift Height

Diameter*fallsVoltageTest LoadNet weight
(kg)m/minkw(m)(mm)(V)(kg)(kg)

1000kg

HHEXP01-01DM

6.7/2.2

1.5/0.6

4

Φ7.1*21 x 1

3 phase

220-440V

50-60Hz


1250kg

55

2000kg

HHEXP02-01DM

6.7/2.2

3.0/1.1

4

ᴓ10.0*30x1

2500kg

71

HHEXP02-02DM

3.3/1.0

1.5/0.6

4

ᴓ8.0*2

75

3000kg

HHEXP03-01DM

5.5/1.8

3.0/1.1

4

Φ11.2*34 x 2

3750kg

135

HHEXP03-02DM

3.0/1.1

4

ᴓ10.0*30x 2

144

HHEXP03-03DM

2.2/0.7

1.5/0.6

4

ᴓ8.0*3

98

5000kg

HHEXP05-02DM

2.7/0.8

3.0/1.1

4

Φ11.2*34 x 2

6250kg

162

Electric Chain Hoist 2.png

Products Drawing:

Capacity(kg)

Model NO

H(mm)

A(mm)

B(mm)

D(mm)

J(mm)

K(mm)

E(mm)

L(mm)

N(mm)

1000kg

HHEXP01-01DM

650

600

330

300

ᴓ31

ᴓ40

176

31

24

2000kg

HHEXP02-01DM

770

725

350

430

ᴓ36

ᴓ49

265

35

30

HHEXP02-02DM

740

600

350

300

ᴓ36

ᴓ49

230

35

30

3000kg

HHEXP03-01DM

840

725

350

470

ᴓ43

ᴓ59

265

42

35

HHEXP03-02DM

920

725

350

430

ᴓ43

ᴓ59

320

42

35

HHEXP03-03DM920600330350ᴓ43ᴓ592804235

5000kg

HHEXP05-02DM

1015

725

350

430

ᴓ54

ᴓ60

325

45

43
