Product Features：

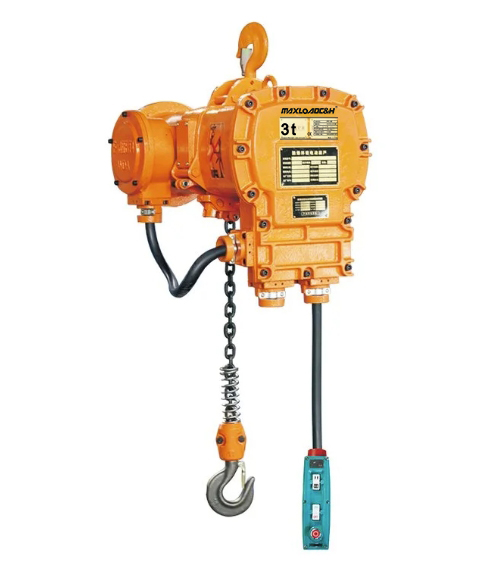

3 Ton Single Speed Explosion-proof Hook Fixed Electric Chain Hoist

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter：

Capacity	Model NO	Lifting Speed	Lifting Out put	Standard Lift Height	*Diameterfalls**	Voltage	Test Load	Net weight
（kg)	Model NO	m/min	kw	(m)	(mm)	(V)	(kg)	(kg)
1000kg	HHEXP01-01SS	6.7/2.2	1.5/0.6	4	Φ7.1*21 x 1	3 phase 220-440V 50-60Hz	1250kg	55
2000kg	HHEXP02-01SS	6.7/2.2	3.0/1.1	4	ᴓ10.0*30x1		2500kg	71
2000kg	HHEXP02-02SS	3.3/1.0	1.5/0.6	4	ᴓ8.0*2		2500kg	75
3000kg	HHEXP03-01SS	5.5/1.8	3.0/1.1	4	*Φ11.234 x 2**		3750kg	135
	HHEXP03-02SS	3.0/1.1	3.0/1.1	4	*ᴓ10.030x 2**			144
	HHEXP03-03SS	2.2/0.7	1.5/0.6	4	*ᴓ8.03**			98
5000kg	HHEXP05-02SS	2.7/0.8	3.0/1.1	4	Φ11.2*34 x 2		6250kg	162

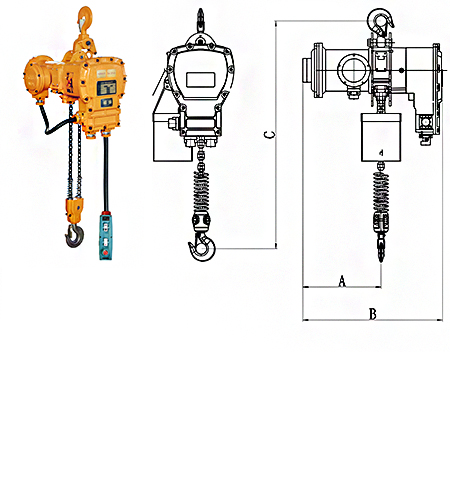

Products Drawing：

Capacity(kg)	Model NO	H(mm）	A(mm）	B(mm）	D(mm）	K(mm）	E(mm）	L(mm）	N(mm）
1000kg	HHEXP01-01SS	6505	600	330	300	ᴓ40	176	31	24
2000kg	HHEXP02-01SS	770	725	350	430	ᴓ49	265	35	30
2000kg	HHEXP02-02SS	740	600	350	300	ᴓ49	230	35	30
3000kg	HHEXP03-01SS	840	725	350	470	ᴓ59	265	42	35
	HHEXP03-02SS	920	725	350	430	ᴓ59	320	42	35
	HHEXP03-03SS	920	600	330	350	ᴓ59	280	42	35
5000kg	HHEXP05-02SS	1015	725	350	430	ᴓ60	325	45	43
