JIB Crane is a kind of small and medium-sized lifting equipment.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.

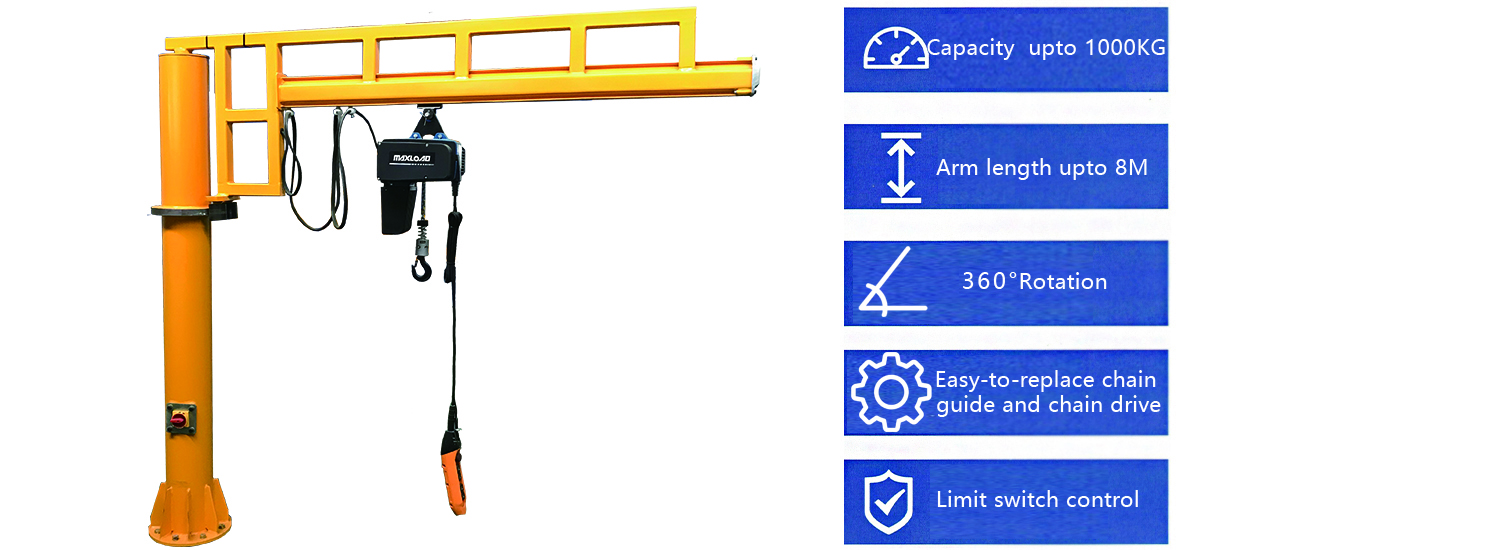

Standard Technique Data:
Arm length:Up to 8m
Capacity:125-1000kg
Rotation:360° Manual
Product Features:

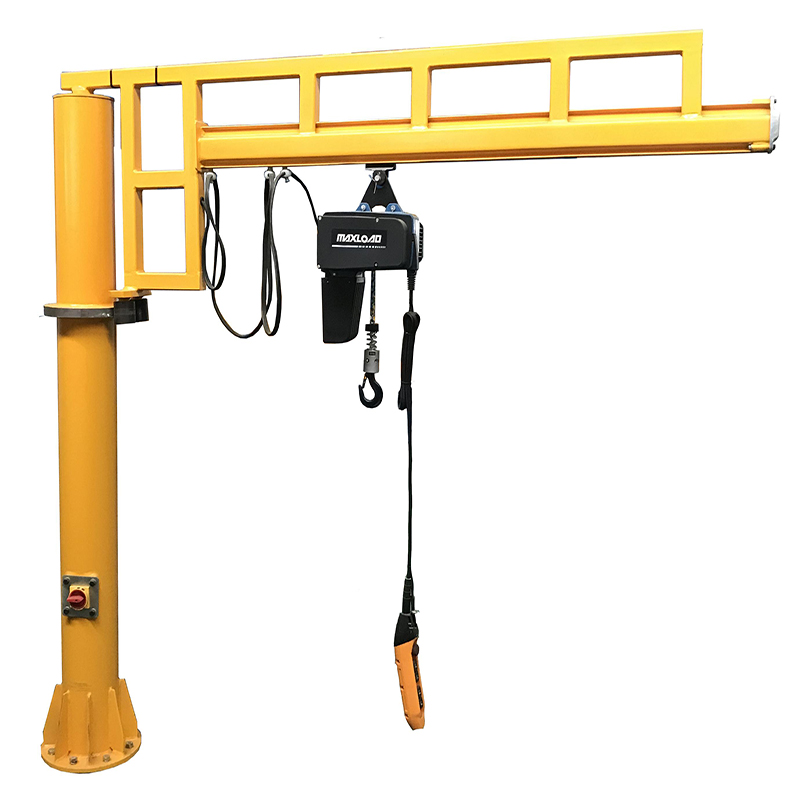

BZR 125 -1000KG 360° Manual Rotating Pilar Type JIB crane
Product Parameter:

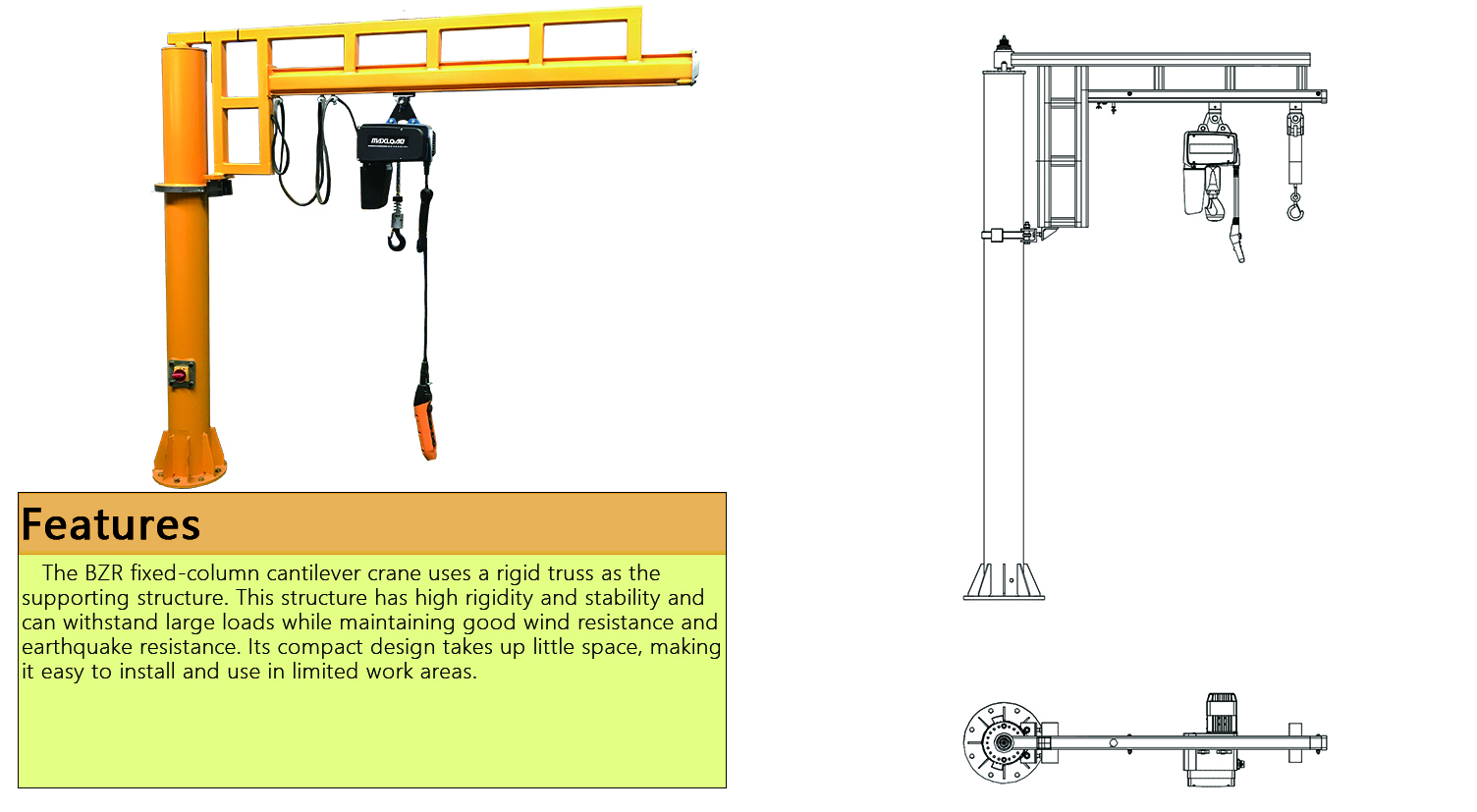

Product Drawing:
| Capacity (kg) | 125kg | 250kg | 500kg | 1000kg |
| Product Code | BZR125 | BZR250 | BZR500 | BZR1000 |
| Beam Material | Closed Track | Closed Track | Closed Track | Closed Track |
| Type | Manual | Manual | Manual | Manual |
| Rotation Mode | Manual | Manual | Manual | Manual |
| Rotation Radius (m) | 2-6m | 2-6m | 2-6m | 2-6m |
| Lifting Height (m) | 2-5m | 2-5m | 2-5m | 2-5m |
| Total Height (m) | 2-6m | 2-6m | 2-6m | 2-6m |
| Rotation angle (°) | 360° | 360° | 360° | 360° |
| Lifting Speed (m/min) | 8/2 | 8/2 | 8/2 | 4/2 |
