Shanghai Maxload Cranes & Hoists Co., Ltd.

Standard Technique Data:

loads up to: 2000 kg

span: 12 meter

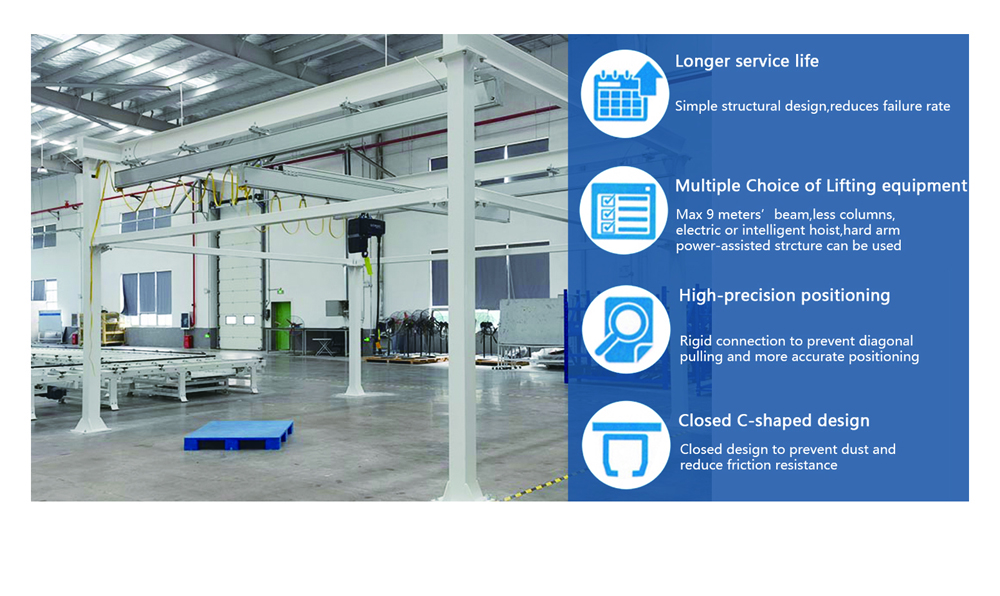

Product Features:

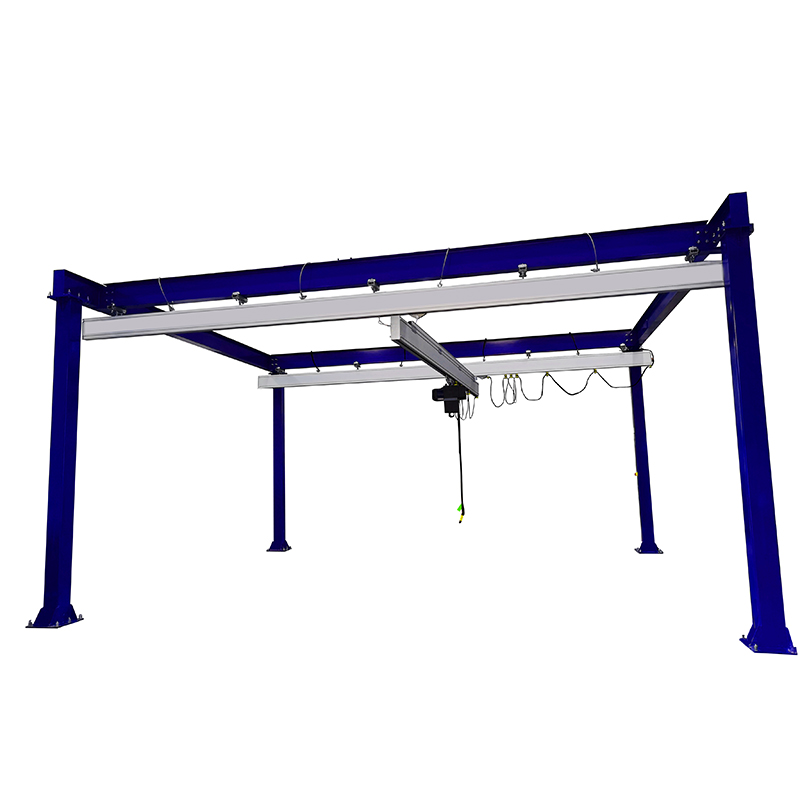

LAF Self-supporting Truss Crane


Product Parameter:




Product Drawing:



Maxloadc&h Light Cranes System
A versatile and economic solution for loads up to 2.000 kg and 12 meter span!
Introduction

Maxloadc&h Light Cranes System provide an ergonomic and economical solution for a varietyof applications.

The modular design of the Maxloadc&h Light Cranes System is useful for future expansion of the system

Composition

Siding door fttings + Overhead conveyor systems + Festoon systems + Fallarrest systems and light cranes

Type
1.Light cranes with cross bridge without any reinforcement
2.Light cranes with cross bridge with welded spine
3.Light cranes with cross bridge with welded square profiles
Application
1.Affordable but limited in application, it is suitable for loads with relatively small bridge spans that require light movement
2.The span is slightly larger than the first category and the support points are less frequent
3.Need to move large loads (up to 2000 kg), the bridge span is large, there are limitations
