Shanghai Maxload Cranes & Hoists Co., Ltd.
Maxiload HHST sereis Stage electric chain hoist has thickened shell with industrial forging，auto-grade paint，more durable；the seiko chain has strong tensile resistance；Pure copper motor make stable operation without burning machine，fast heat dissipation，high efficiency；lightweight and durable moisture-proof and dust-proof，to meet the needs of different environment.
Standard technique data:
Voltage:220V--440V,3phase;
Lift height:20/24/28/32m.
Load weight range：500kg/1000kg

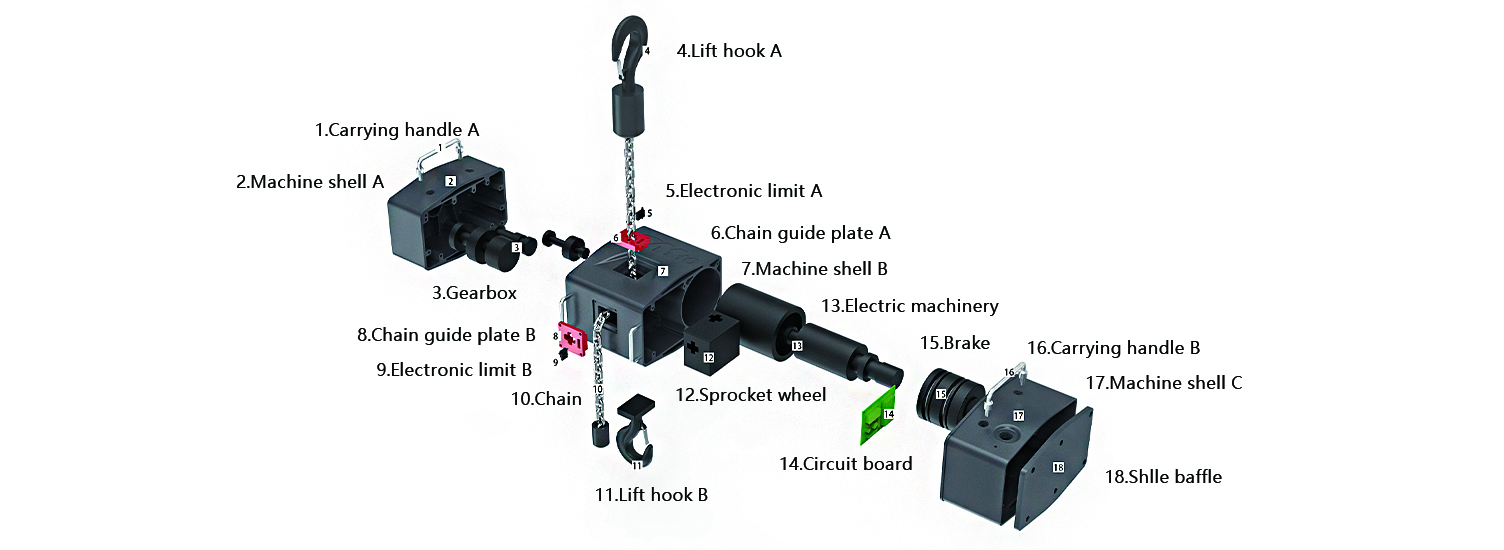

Products Features：

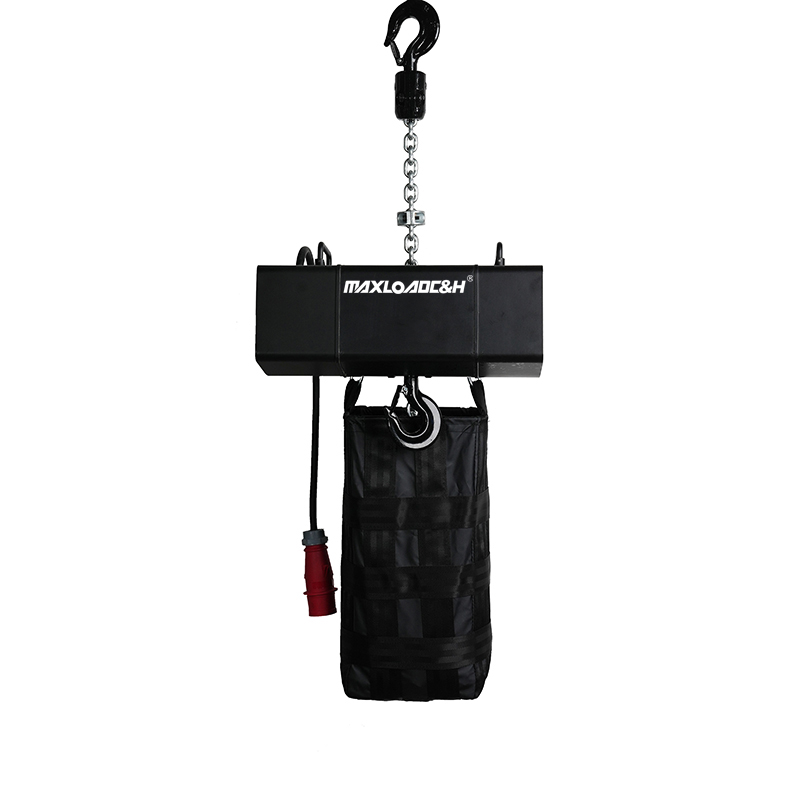

1000KG Stage Electric Chain Hoist
Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.
Products Parameter：
1000KG Daul Brake Stage Electric Chain Hoist
| Capacity | Model NO | Lift Speed | Lift Output | Lift Height | Chain Size | Voltage | Test Load | Net/Gross weight |
| （kg) | (m/min) | kw | (m) | (mm) | (V) | (kg) | (kg) | |
500kg | HHST-500S | 8 | 0.9 | 20/24/28/32 | ᴓ7.0*20 | 3 phase 220-440V 50-60Hz | 1000kg | 60/80 |
500kg | HHST-500S+ | 8 | 0.9 | 20/24/28/32 | ᴓ7.0*20 | 1000kg | 61/80 | |
500kg | HHST-500D8 | 8 | 0.9 | 20/24/28/32 | ᴓ7.0*20 | 1000kg | 60/80 | |
| 500kg | HHST-500D8+ | 8 | 0.9 | 20/24/28/32 | ᴓ7.0*20 | 1000kg | 61/80 | |
1000kg | HHST-1000S | 4 | 0.75 | 20/24/28/32 | ᴓ7.0*20 | 1500kg | 60/80 | |
| 1000kg | HHST-1000S+ | 4 | 0.75 | 20/24/28/32 | ᴓ7.0*20 | 1500kg | 61/80 | |
| 1000kg | HHST-1000D8 | 4 | 0.75 | 20/24/28/32 | ᴓ7.0*20 | 1500kg | 60/80 | |
| 1000kg | HHST-1000D8+ | 4 | 0.75 | 20/24/28/32 | ᴓ7.0*20 | 1500kg | 61/80 |
Remark:The model NO with"+" means double brake,otherwise means single brake.

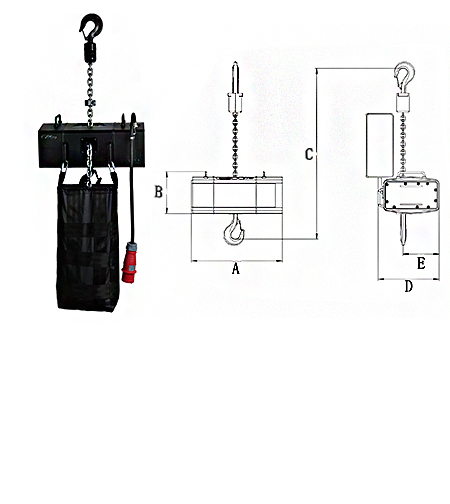

Capacity (kg) | Model NO | H (mm） | A (mm） | B (mm） | D (mm） | E (mm） | K (mm） | N (mm） |
500kg | HHST-500S | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
500kg | HHST-500S+ | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
500kg | HHST-500D8 | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
| 500kg | HHST-500D8+ | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
1000kg | HHST-1000S | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
| 1000kg | HHST-1000S+ | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
| 1000kg | HHST-1000D8 | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
| 1000kg | HHST-1000D8+ | 400 | 595 | 320 | 300 | 230 | 40 | 24 |
